Rear bracing system

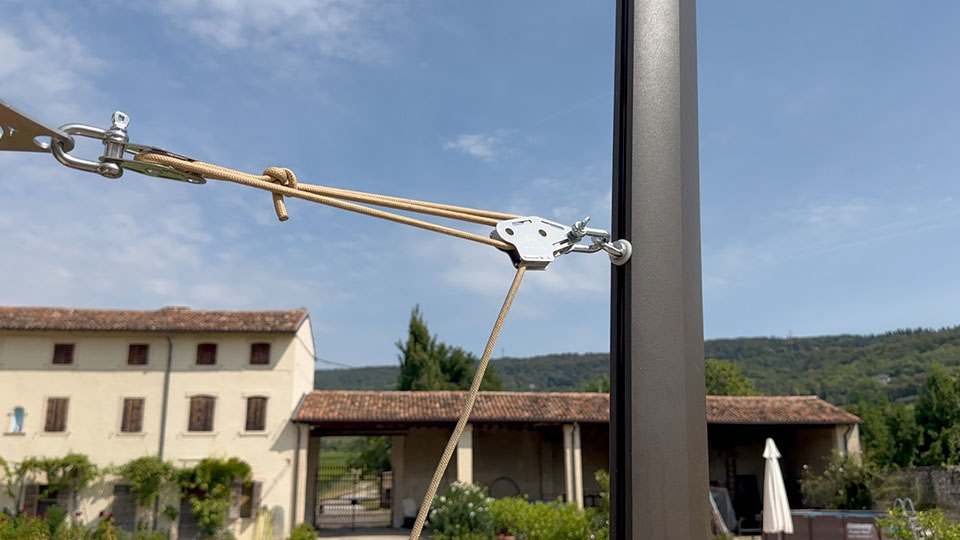

The Muscle x3 back tensioner is an accessory that will help to give additional stability to the Maanta shade sail poles.With this Muscle x3 kit it’s easy to provide strength and tension to counteract the frontal force of the sail tent.In this way we can increase stability and tension to the whole structure and make it more wind and rain resistant.The kit...
£27.35 £30.39

Set of 4 threaded rods M12 13 cm

The threaded rods made of galvanized steel M12 have a length of 13 cm and are ideal for fixing the base plates of our poles Alu-Simple- and Ulisse.This complete set consists of: 4 threaded rods M12 with 13 cm length 4 washers 4 screw nuts Perfect for all Maanta poles
£14.20 £15.77

Set of 4 threaded rods M10 12 cm

The threaded rods made of galvanized steel M10 have a length of 12 cm and are ideal for fixing our wall plates .This complete set consists of:     4 threaded rods M10 with 12 cm length     4 washers     4 screw nuts Perfect for all Maanta wall plates
£10.91 £12.12

Silicone gun G2000

Injection mortar and dispenser for the professional installation of wall-mountings and poles with threaded rods. Good quality of the G2000 silicone gun is important when distributing products. The cartridge must be perfectly installed in the gun with the same mixing ratio. The thrust in the center of the bottom of the cartridge must be uniform and...
£16.39 £18.21

300ml chemical anchoring cartridge M-Plus

Injection mortar and dispenser for the professional installation of wall-mountings and poles with threaded rods. The M-Plus chemical anchor is the ideal solution for fixing the base of poles or anchoring plates to the wall for shade sails using threaded rod kits. Our chemical anchor has no styrene component which makes it environmentally friendly. High...
£16.39 £18.21

Universal cleat

This practical Maanta accessory allows you to wrap up to 4 meters of 6mm nautical rope.It is very practical to keep the excess line resulting from Muscle kits in an orderly and aesthetic way.Made of 316 nautical steel, it is robust, design and very practical.It is compatible with both Alu-Simple poles (T-nut to anchor to the lane already included) and...
£21.87 £24.30

Outdoor spotlight Easy Lamp

The Easy Lamp outdoor spotlight is a technical product with an impeccable construction but at the same time practical and aesthetically appreciable.It is made of sturdy aluminum obtained from a single block, has a power of 1200 lumens, is IP66 certified and arrives already wired: simply plug it into the socket and it will be able to immediately illuminate...
£60.24 £66.93

Steel carabiner D60

Carabiner in mirror-polished  steel, without eye, with stainless steel spring for shade sails.Superior grade quality.Tested and guaranteed.Measurements: Diameter Ø 6mm Length 60mm Height 9mm
£3.23 £3.59

Tensioner M6 steel

Two-eye steel tensioner used as a tie-rod to regulate the tension of lines to which static loads are applied (anchoring and tensile structures). Specially selected for shading sails, even large ones Sturdy and resistant over time Adjustable from 160 mm up to 255 mm Work load: 160 kg according to test report UNI EN 10204 with safety factor 4
£5.43 £6.03

Additional M8 eyebolt for Maanta poles

Additional M8 eyebolt for fixing shade sails or accessories our Ulisse and Alu-SimplE poles.Available in versions: 1 Galvanized M8 eyebolt + 2 nylon washers 1 M8 stainless steel eyebolt + 2 nylon washers 1 galvanized M8 eyebolt + 2 nylon washers + 1 T nut (ideal for Alu-SimplE) 1 M8 stainless steel eyebolt + 2 nylon washers + 1 T nut (ideal for Alu-SimplE)
£3.18 £3.53

Nautical rope

Specially selected nautical rope for professional fixing of shade sails. Soft, technical, resistant Made in Italy Available in different lengths and colors Accessory easy to use Excellent quality and low price
£3.23 £3.59

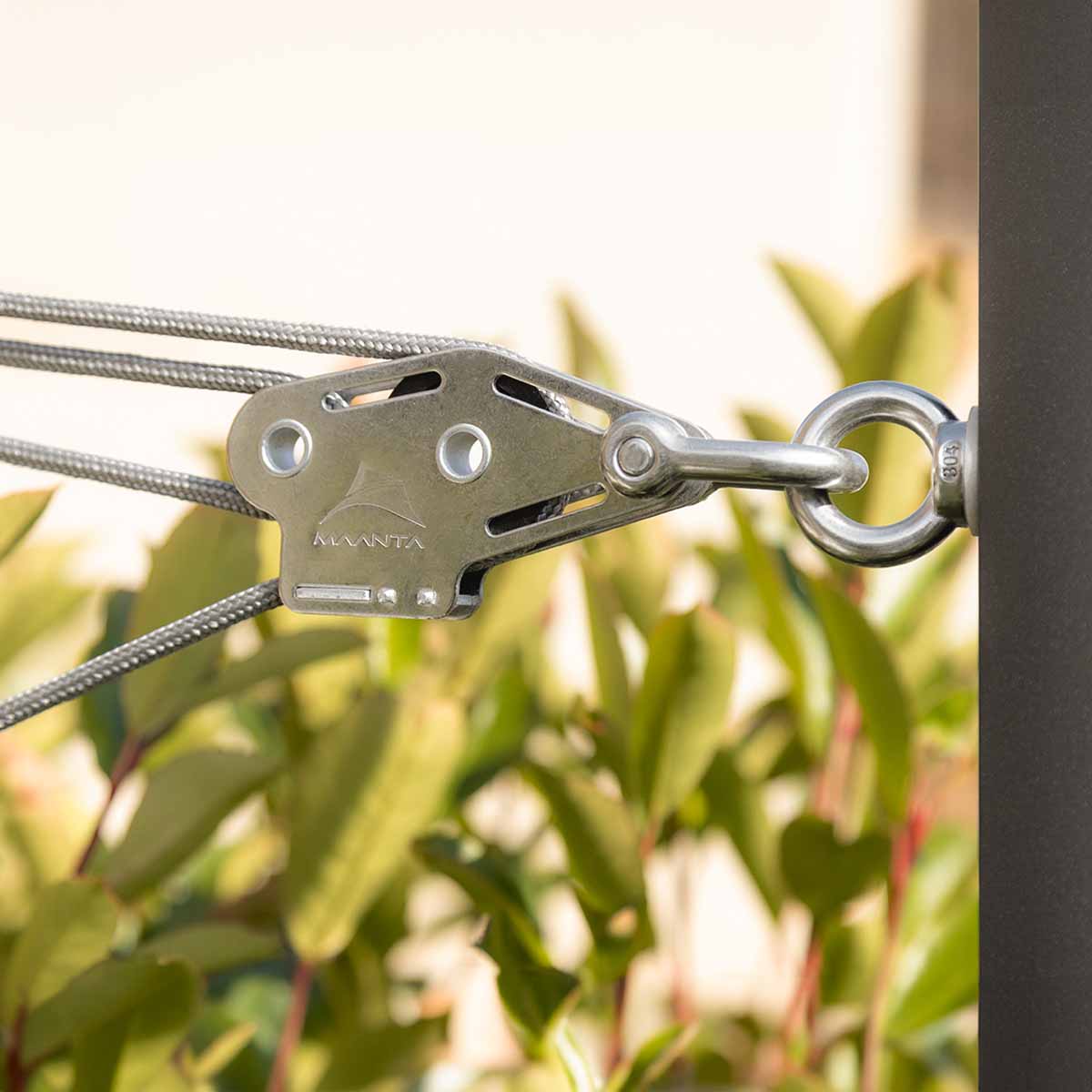

Kit wall mount Muscle x3 with traction booster

The Muscle x3 kit is the best wall anchor on the market because allows you to stretch any shade sail with great ease. The Muscle x3 wall anchoring kit includes Sturdy square steel plate (10x10cm), 2 D shackles, 1 pulley, 1 pulley with cam cleat, 4 meters of nautical rope It guarantees a very high tension to the sail for greater resistance to wind and...
£42.33 £48.66

Muscle x3 Pole with traction booster

The Kit Muscle Pole x3 for poles includes T-nut (useful x Alu Simple) 1 male eyebolt   Nylon washer 2 D shackles Pulley Pulley with cam cleat 4 meters of nautical rope It guarantees a very high tension to the sail for greater resistance to wind and waterIt can be installed on our Ulisse and Alu Simple poles.
£32.83 £36.48

Fischer Thermax

Fischer Thermax is the solution for fixing to walls with thermal insulation. This system is specially made for high loads and prevents thermal bridging between the wall and the outside of the insulation. It is used for fixing Muscle x3 and Simple wall plates. Thermax is also ideal for fixing poles with collars to the wall. Available in two sizes, for...
£109.57 £121.74

insights

Useful information on shade sail anchoring accessories: which threaded rods to choose?

The set of 4 pcs. threaded rods M10 - 12cm (Article-No.: 2030026) is ideal for installing our wall plates.
The threaded rods are made of galvanised steel with a diameter of M10 and a length of 12cm.
They are suitable for fixing our wall anchor plates; they are NOT suitable for installing poles.

This set includes:

  • 4 threaded rods M10 with a length of 12cm
  • 4 washers
  • 4 screw nuts

They are compatible with the following Maanta wall kits:

The set of 4 pcs. threaded rods M12 - 13cm (Article-No.: 2030025) consists of 4 threaded galvanised steel rods of diameter M12 and length 13cm.
They are suitable for fixing the base of Maanta poles (AluSimple and Ulisse) to the ground and the collars of Maanta poles to the wall.

This set includes:

  • 4 threaded rods M12 with a length of 13cm
  • 4 washers
  • 4 screw nuts

Poles catalogue

MaantA Shade Sail Poles

ALU-SIMPLE ULISSE COMPETITOR INOX 60X3
ALU-SIMPLE ULISSE COMPETITOR INOX 60X3
BENDING RESISTANCE 5/5 5/5 2/5
COLOURS Silver - Anthracite Steel  - Anthracite Steel
SALTINESS RESISTANCE 3/5 3/5 4/5
FIXING POINTS Unlimited 4 front + 2 back from 1 to 3
BASE INCLUDED yes yes no
SAIL FASTENING INCLUDED Muscle x3 included Muscle x3 included not included
PRICE OF COMPLETE KIT less than € 300 less than € 180 € 250/300
  Product sheet Alu-Simple Product sheet Ulisse


FAQ

The Maanta wall plates are specially designed to support the tension of a sun shade sail; they are larger than the standard plates sold on the market and have 4 holes.
You therefore need 4 threaded rods per wall plate (one set consists of 4 threaded rods M10 12cm long and allows for the installation of one plate)

Yes, they are not included in the shade sail poles and anchor kits.
This allows you to choose the appropriate threaded rod or dowel according to your needs.

Once the threaded rod has been inserted into the chemist, it is advisable to allow it to rest for at least 30 minutes. During this short time the chemist will harden. For optimal setting, 2 to 12 hours are a good time.

We recommend using a 14 mm drill bit and drilling about 15 cm deep.
We recommend drilling the concrete plinth in a "funnel shape" so that the chemical will fill the hole completely.

For each Ulisse and Alu-simple pole with 75° base and 90° base you need 1 set of 4 threaded rods M12 x 13cm.
Please note: 2 sets of 4 threaded rods M12 x 13cm are required for the pole Ulisse with wall mountings: a total of 8 threaded rods.

For the pole Ulisse you need a total of 8 threaded rods M12 - 13cm (2 sets of 4 - threaded rods M12 - 13cm).
For the pole Alu-Simple you need a total of 4 threaded rods M12 13cm (1 Set 4 pcs - Threaded rods M12 - 13cm)

Yes, the silicone gun can be used for 150ml, 280ml and 300ml cartridges.

Yes, you can save money by choosing the kit that includes the gun and chemical anchor cartridges.
