Outdoor Roller Shade EasyRoll v2 -- Standard Sizes Retractable screen with arms and hooks
EasyRoll V2 is an outdoor roller shade with hooks and arms entirely Made in Italy.
It is an economic, practical, fast and minimally invasive solution that can be used on your terrace, balcony or porch.
- Outdoor roll up shade with arms and floor hooks
- EasySwitch compatible: transform your roller shade into a clear PVC vinyl shade for the winter.
- Oversized roller and stainless steel fixing brackets.
- Oversized roller diameter 75 prepared for EasySwitch and aluminum weight bar.
- Also available made to measure, go to the configurator
It is delivered disassembled so that the roller and each of its components can be easily transported even to the highest floors.
Accessories
Description
EasyRoll v2: outdoor roller shade with arms and hooks
Thanks to the supplied arms, it can be installed on terraces and balconies, guaranteeing much more airiness than a normal awning that descends completely vertically.
On this page you will find the best-selling standard sizes at a lower price than the made-to-measure ones, which can be made using the configurator on this page.
Made with an oversized roller, 75 mm in diameter, and an aluminum weight bar, it is able to withstand the worst weather conditions.
Available in two fabrics and numerous colors: Braidd5® and Purishade®, it reduces the amount of solar heating by 85%. The first is a breathable micro-perforated fabric capable of giving airiness to the environment. The second is a waterproof but breathable fabric, also used in our shade sails.
EasyRoll v2 standard is available in over 50 size combinations, from the smallest 150 x 150cm to 350 x 350 cm. You can choose from 13 sizes, 2 types of fabric and 10 different colours.
If you need a made-to-measure one, go to the online configurator and immediately see the price
EasySwitch®: the system that makes this roll up shade unique!
The EasySwitch® system is a Maanta patent that allows you to replace the fabric in just a few minutes and without removing the winder roller, a necessary practice in common awnings.
This system was created to give our customers the opportunity to use their outdoor spaces both during the summer and during the winter.
By replacing the shade cloth with a clear PVC vinyl fabric, it will be possible to shelter the space from rain and wind without giving up the little light we find during the winter period.
Some of our customers apply vertical blinds on pergolas, or to protect a car or to close the porch and be able to enjoy the outdoor space even during the winter.
Watch the explanatory videos of how the EasySwitch® system works.
Reuse the same installation to change the fabric in winter, with the EasySwitch system you can replace the shade cloth with a transparent rainproof and windproof vinyl sheet in less than 2 minutes, without having to disassemble the roller! Click here for replacement fabrics.
EXTRA-STURDY ROLLER WITH MAANTA DESIGN
If you want something different the only solution is to invent it! This style of thinking is shared by the entire Maanta crew.
From this principle comes the profile for roller shades with a unique design.
We were not inspired by anyone, and the goal in this case was not design, but functionality: the patented EasySwitch® feature.
The roller has been increased both in diameter (75 mm) and in thickness (2 mm).
Totally Made in Italy for great design and guaranteed reliability and durability!
AVAILABLE FABRICS
EasyRoll v2, the roll-up screen with arms, is available in three fabrics.
Below is a small overview of the fabrics and their differences.
You can learn more with our guide to fabrics for outdoor shades.
PURISHADE®: 270 GSM waterproof and breathable
Fabric created for shade sails, it also finds excellent application for vertical awnings.
Ideal for those who want to shield themselves looking for a lot of privacy.
• absolute impermeability > 500 mm water column
• high breathability > up to 4 times higher than the most common polyester and acrylic fabrics
• abrasion resistance > up to 50 times higher than the most common polyester and acrylic fabrics

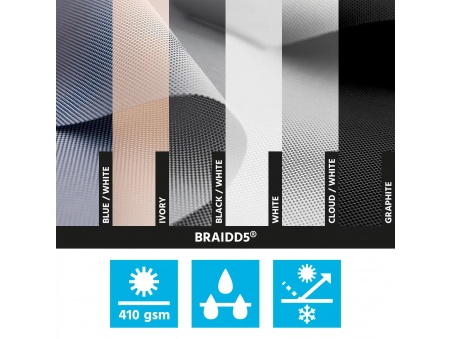

BRAIDD5®: 410 GSM breathable micro-perforated
Technical fabric specially created for outdoor shades.
Ideal for those looking for a breathable fabric with an elegant texture.
• thermal shield effect > very high breathability and circulation
of the air
• blocking of 95% of UV rays
• elegant texture with high tear resistance > 1600N x 1500N
BENEFITS

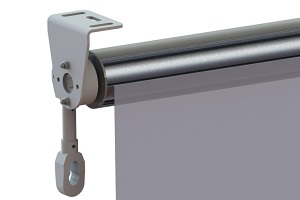

heavy duty profile
The extra sturdy roller of 75 millimeter diameter and aluminum thickness 2,
is specially oversized to give stability and security even in bad weather.

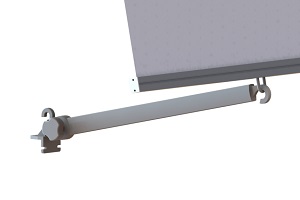

ARMS INCLUDED
The arms with adjustable position from 0° to 180° are included. The hooks for possible fixing to the ground are also included.
WEIGHT BAR IN ALUMINIUM
The final weight bar which usually consists of a plastic tube has been replaced with a Made in Italy aluminum profile. This profile allows the awning to descend and keep it stable even in case of wind.
STAINLESS STEEL BRACKETS
The support brackts of the winder roller are made in Italy with 304 stainless steel and allow installation of the maneuver either on the right or on the left.
They can be installed on the ceiling or wall and allow installation in series.
EASYSWITCH®
The system patented by our crew to allow you to replace the fabric, for example with a clear vinyl PVC for winter, in just a few seconds and without having to remove the whole roller and brackets.
Replacement is possible in just a few seconds and without the need to remove the winder roller.
TAILOR-MADE
EasyRoll v2 is available at a competitive price. Configure it directly online by entering the actual measurements available.
EASE OF UNLOADING AND ASSEMBLY
Upon receipt of the goods, there will be no need for forklifts. Assembly will take two hours in two people!
Data sheet
EasyRoll v2: retractable screen with arms and hooks
Its main applications are on porches, terraces and balconies instead of the classic awnings.
EasyRoll v2 was born from the need to be able to protect the terrace from glare, without giving up that sense of airiness that we are able to give through the spacer arms.
Unlike arm awnings, it will be possible to have more privacy and adjust the inclination of the fabric.
The roller profile designed and drawn by the research and development team is made of aluminium.
EasyRoll v2 is sold complete with numerous accessories for manual crank operation. Motorization is possible but not recommended due to manual fixing to the arms or floor hooks.
DATA SHEET
| Model | EasyRoll v2 Standard sizes |
| Available sizes | 47 standard sizes, from 150 x 150 cm to 350 x 350 cm. |
| Overall weight | Variable according to the size chosen and the fabric |
| FABRICS | |
Fabric types | Purishade®: Waterproof Polypropylene Olefin
Braidd5®: Breathable Microperforated Polyester and PVC
|
Fabric weight | Purishade®: 270 GSM Braidd5®: 410 GSM |
Waterproofing | Purishade®: Yes Braidd5®: No |
Seams sealed | Purishade®: Yes Braidd5®: No Clear®: Yes |
Tear resistance / hail resistance | Purishade®: Yes Braidd5®: No |
Maximum area | 350 x 350 cm |
| STRUCTURE | |
Winding roller and terminal | Material: Aluminum Color: Silver |
Winder support plates | Material: 316 stainless steel Color: Stainless steel |
Spacer arms and rod | Hooks and pair of arms included. Maneuvering crank with a length of 150 cm |
| PACKAGING | |
| Box sizes | Minimum 2 boxes, maximum size 156 x 25 x 17 cm |
Purishade Fabrics
Braidd5 fabrics
Package contents
PACKAGE CONTENTS
Easy Roll v2 includes all the accessories needed for manual (crank) operation.
INCLUDED ELEMENTS
MAIN ROLLER
The winding roller is the heart of the system; with a diameter of 75 mm, it allows the winding of roll up screens with a maximum size of 350 x 350 cm.

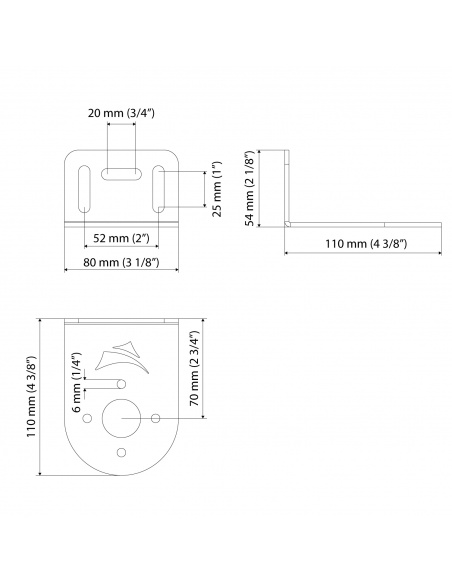

FIXING BRACKETS
The roller support brackets are designed by Maanta and produced in Italy. Made of 316 stainless steel thanks to their modularity they can be fixed to the ceiling or perpendicular to the wall. They can also support compositions of two or more vertical blinds (advise in the order notes).

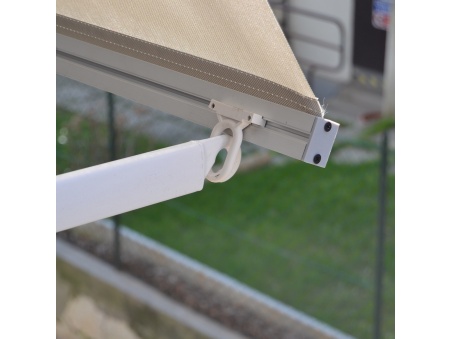

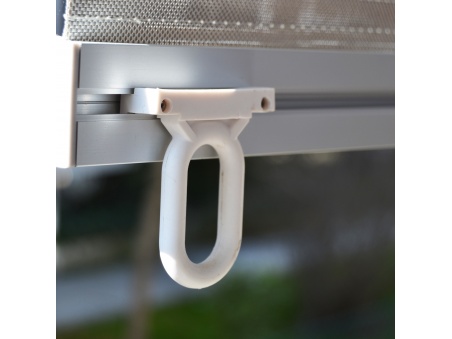

WEIGHT BAR
The weight bar is made in aluminium with a special Maanta design. It allows the roller shade to be very stable even in strong winds.

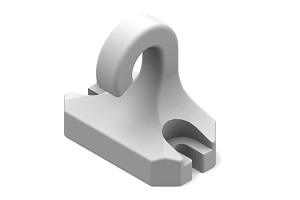

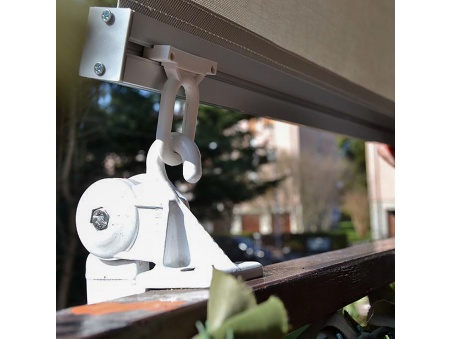

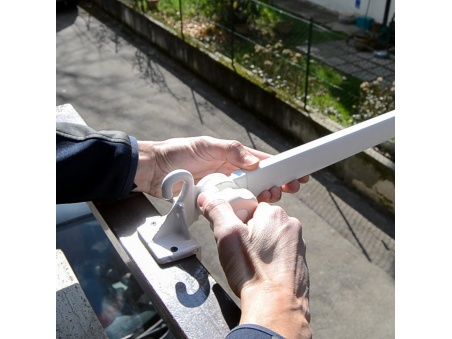

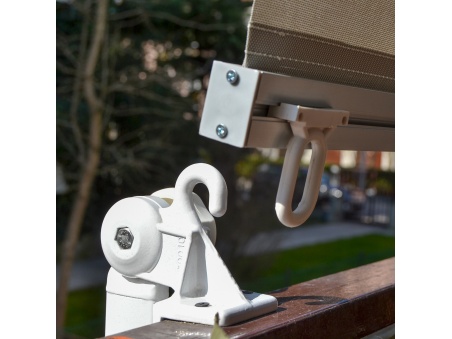

HOOKS AND ARMS
The hooks for fixing to the ground and the arms are included. The latter are adjustable from 0° to 180° and can be easily installed on the railings or low walls of the most common terraces.
GEAR
The gear allows the manual operation of the roller shade. The crank handel is 150 cm long and is included.

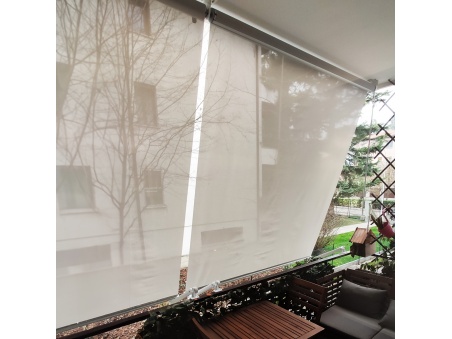

INSTALLATION EXAMPLES
Ceiling Mount (Undermount)
In this example Easy Roll v2 was installed undermount (ceiling mount) thanks to the supplied modular brackets.
Face mount (surface / wall mount)
In this example, Easy Roll v2 was installed on a vertical wall (face mount) thanks to the modular brackets included in the standard equipment.

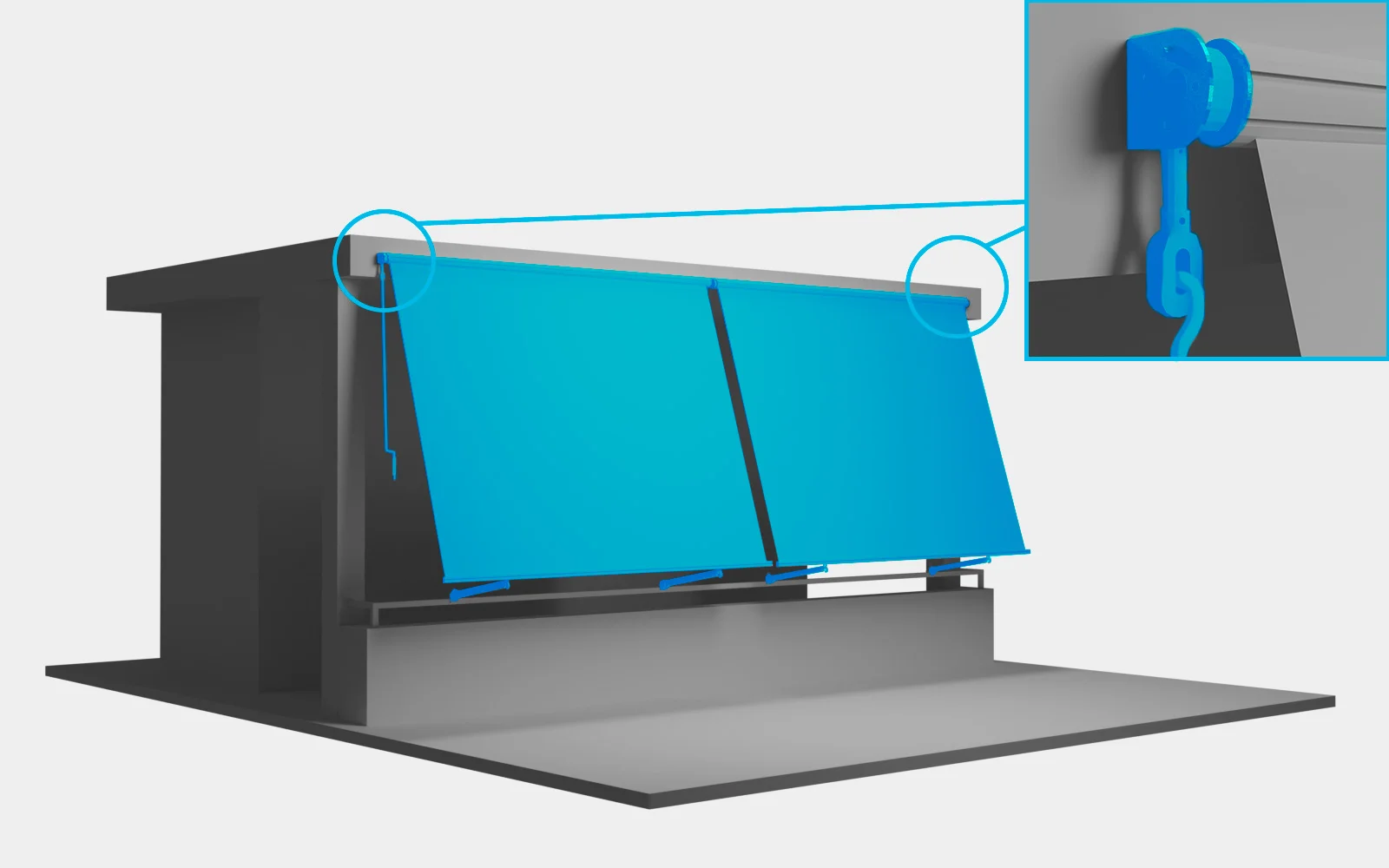

Multiple installation in series
The supplied brackets can be used to install multiple shades in series. It is necessary to notify this through the order notes of this installation.
Each roll up shade is shipped with its own pair of hooks and arms.
Instructions & Info
PRODUCT ASSEMBLY VIDEO
Assembling Easy Roll v2 is simple and does not require skilled labor or special equipment.
The roller can be easily assembled, just follow the steps in the installation video, or in the paper guides inside the package.
ASSEMBLY INSTRUCTIONS IN PDF FORMAT
The Maistra pergola is fromeasy installationeven for the less experienced do-it-yourselfer.
Our research and development team is always keen to make functional components that are easy to assemble while maintaining a distinctive design.
Componentsof complex assemblyAre supplied pre-assembled.
Inside the package are supplied thepaper instructions.
Our research and development team is always keen to make functional components that are easy to assemble while maintaining a distinctive design.
Componentsof complex assemblyAre supplied pre-assembled.
Inside the package are supplied thepaper instructions.
Also available and downloadable are theInstructions in PDF format, download available here
These versions are constantly updated based on feedback from buyers.
MAIN STEPS
1 - ROLLER ASSEMBLY
It is delivered disassembled so that the roller and each of its components can be easily transported even to the highest floors.
2 - ASSEMBLY OF THE TERMINAL
As with the roller, the weight bar must also be assembled using the included T-nuts.
3 - INSERTING THE FABRIC
Insert the fabric in the groove and roll it up on the roller
4 - FIXING THE BRACKETS
Fix the roller to the ceiling or wall according to the type of installation, once the upper part is fixed, lower the fabric and bring it perpendicular to fix the plates to the ground.
5 - FIXING THE ARMS OR HOOKS
Fix the spacer arms to a railing or a wall.
6 - TESTING AND INSPECTION
Test the sliding fluidity of the terminal in the lanyard, during the ascent and descent phases.
FAQ

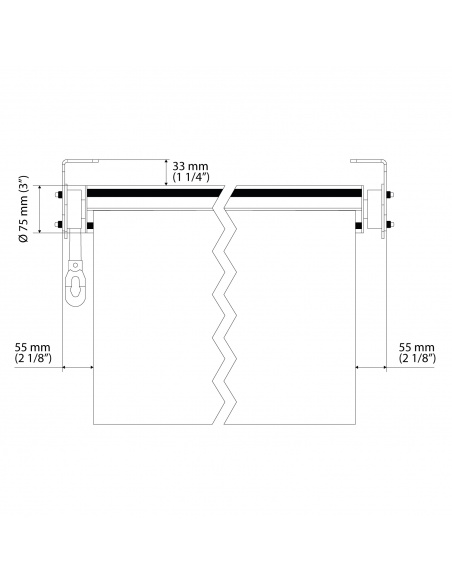

How to measure vertical roller blinds?
All measurements refer to the complete awning with roller and fixing plates.
The fabric/PVC film is slightly narrower.
Here are the distances from the outside of the plate to the fabric for the various products (the distances are symmetrical on each side).
Easy Clear and Easy Roll without guide wires:
The fabric is overall 92mm (46+46mm) narrower than the complete structure.
Reef Roll with guide wires:
The canvas is 98mm (49+49mm) narrower overall than the complete structure.
The dimensions of the fixing plates are identical for all Maanta vertical blind models.
