Threaded rods for poles M12x13 Set of 4 pcs in galvanised steel or stainless steel

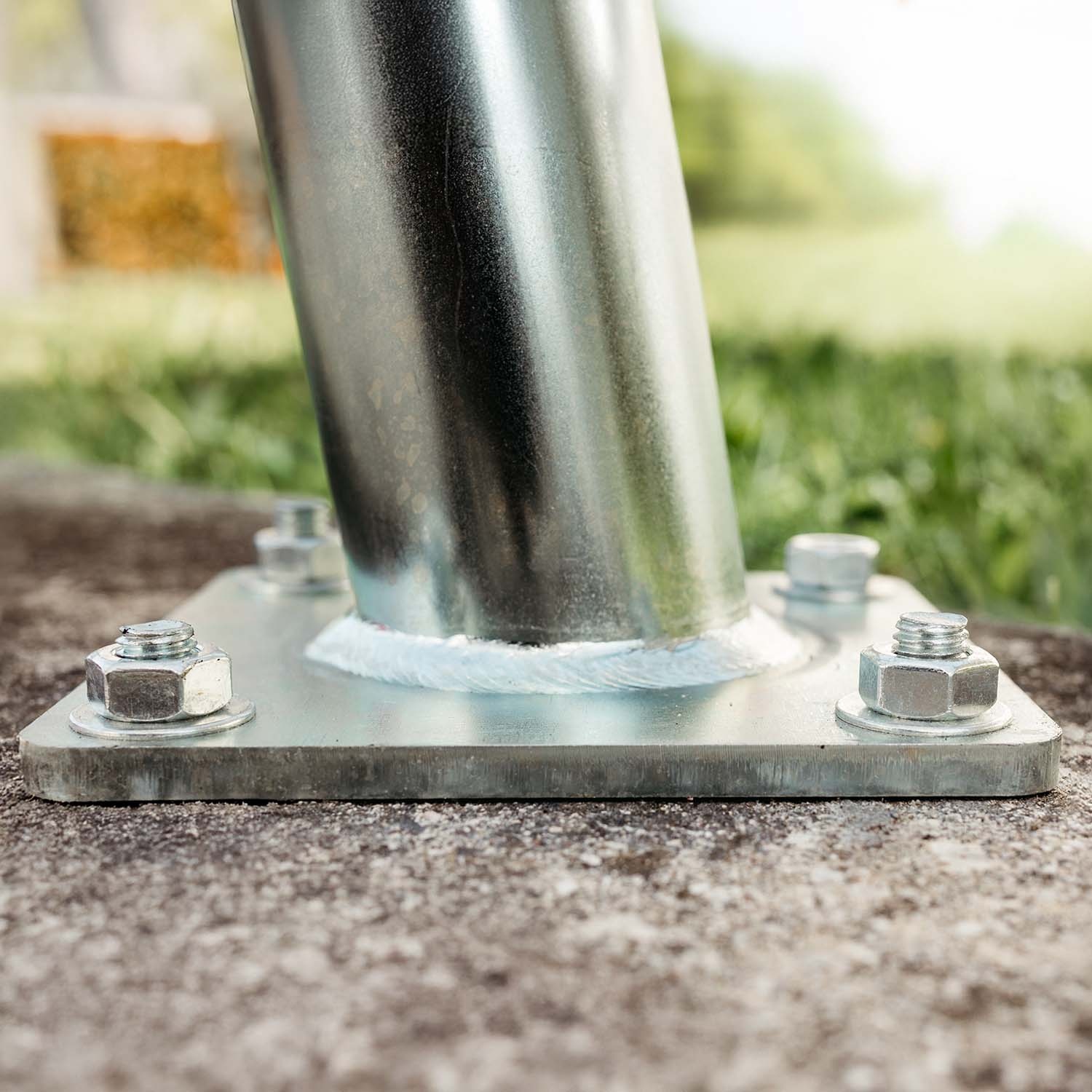

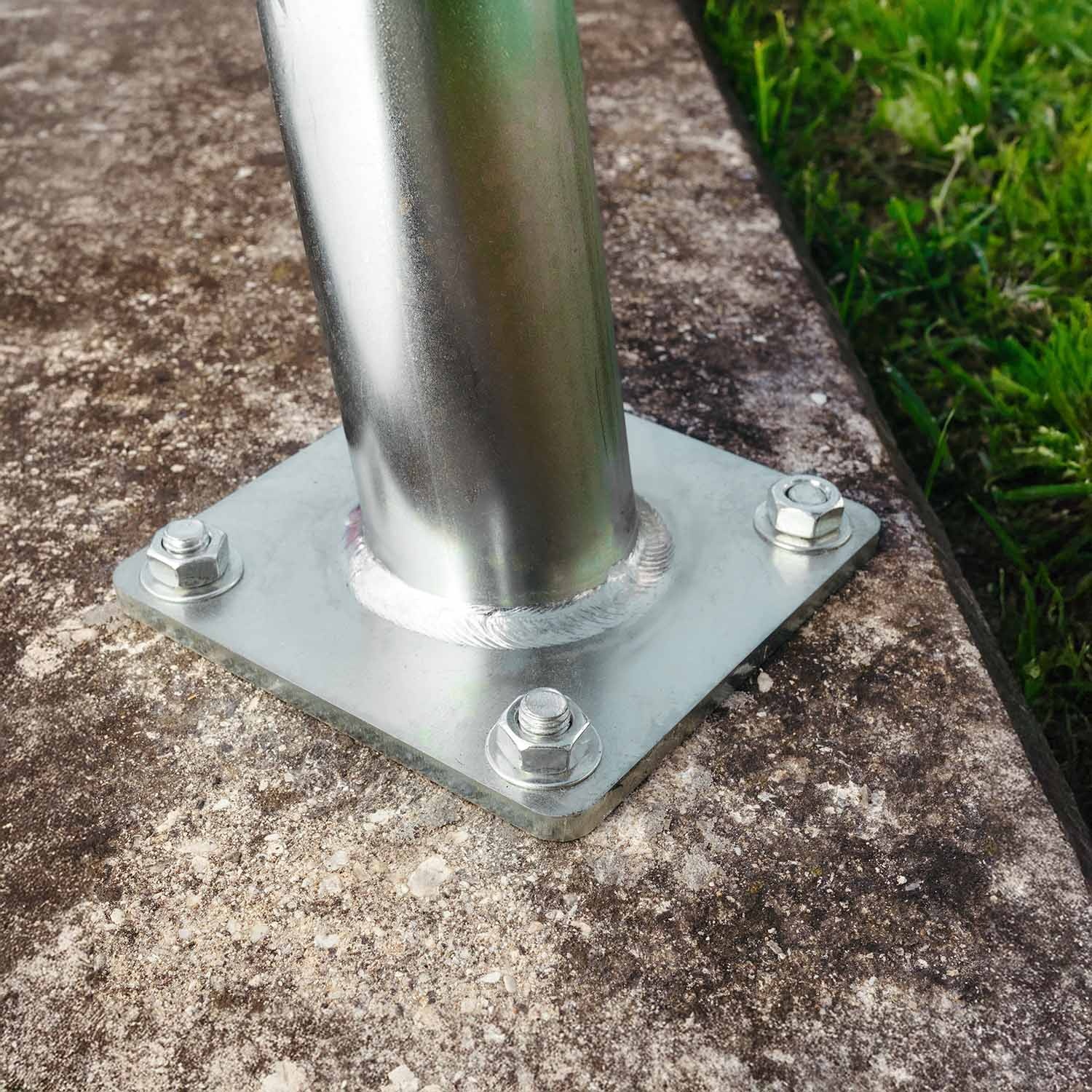

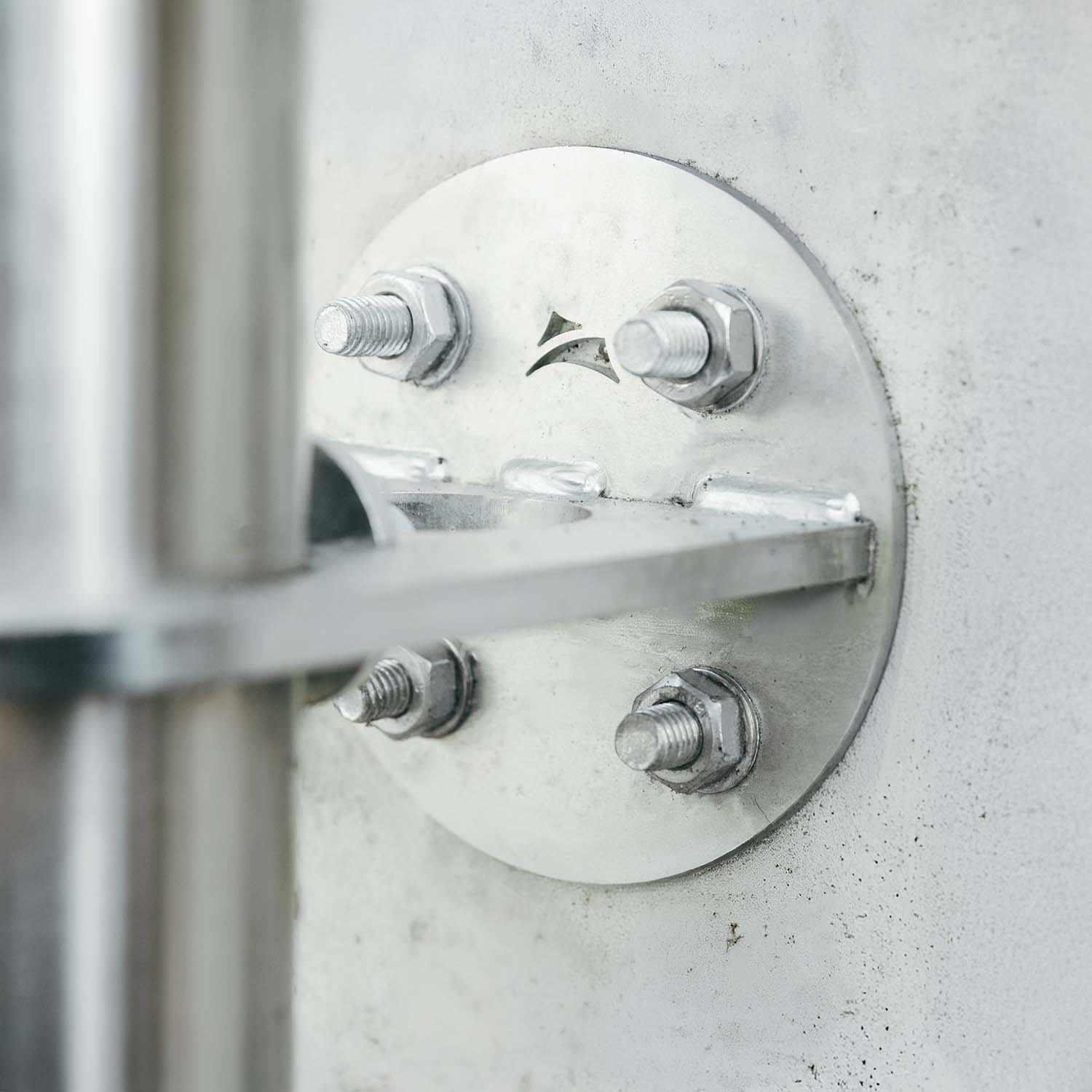

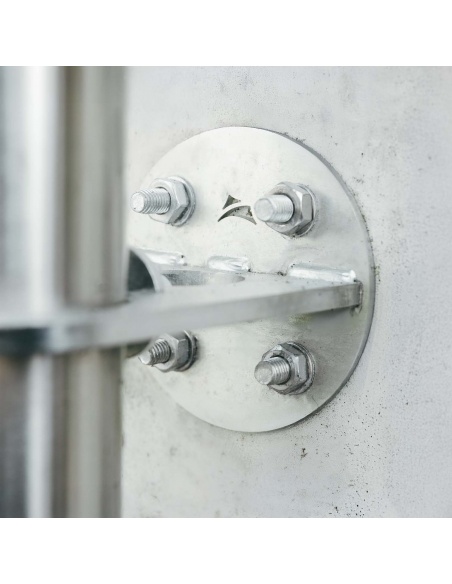

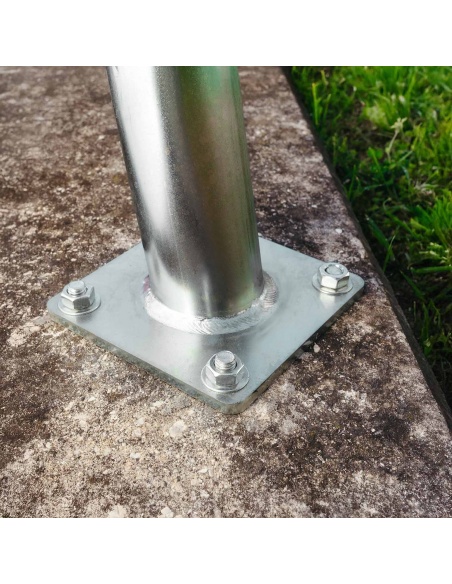

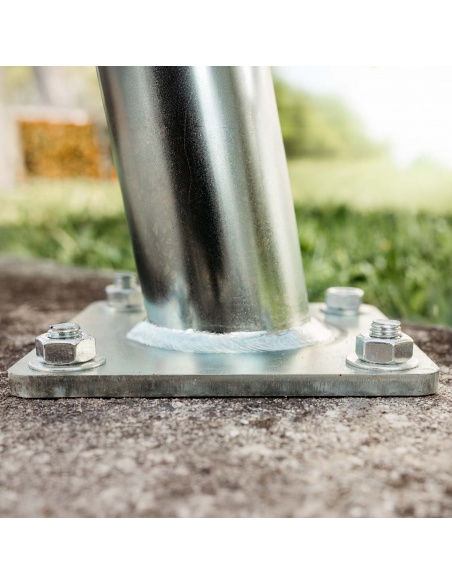

A pole's stability depends on how well its anchoring holds. The M12 threaded rods go into the cement or masonry and secure the ground base and the wall collar, even under load. Choose them in galvanised steel for most outdoor spaces, or in stainless steel AISI 304 where humidity and exposure run higher.

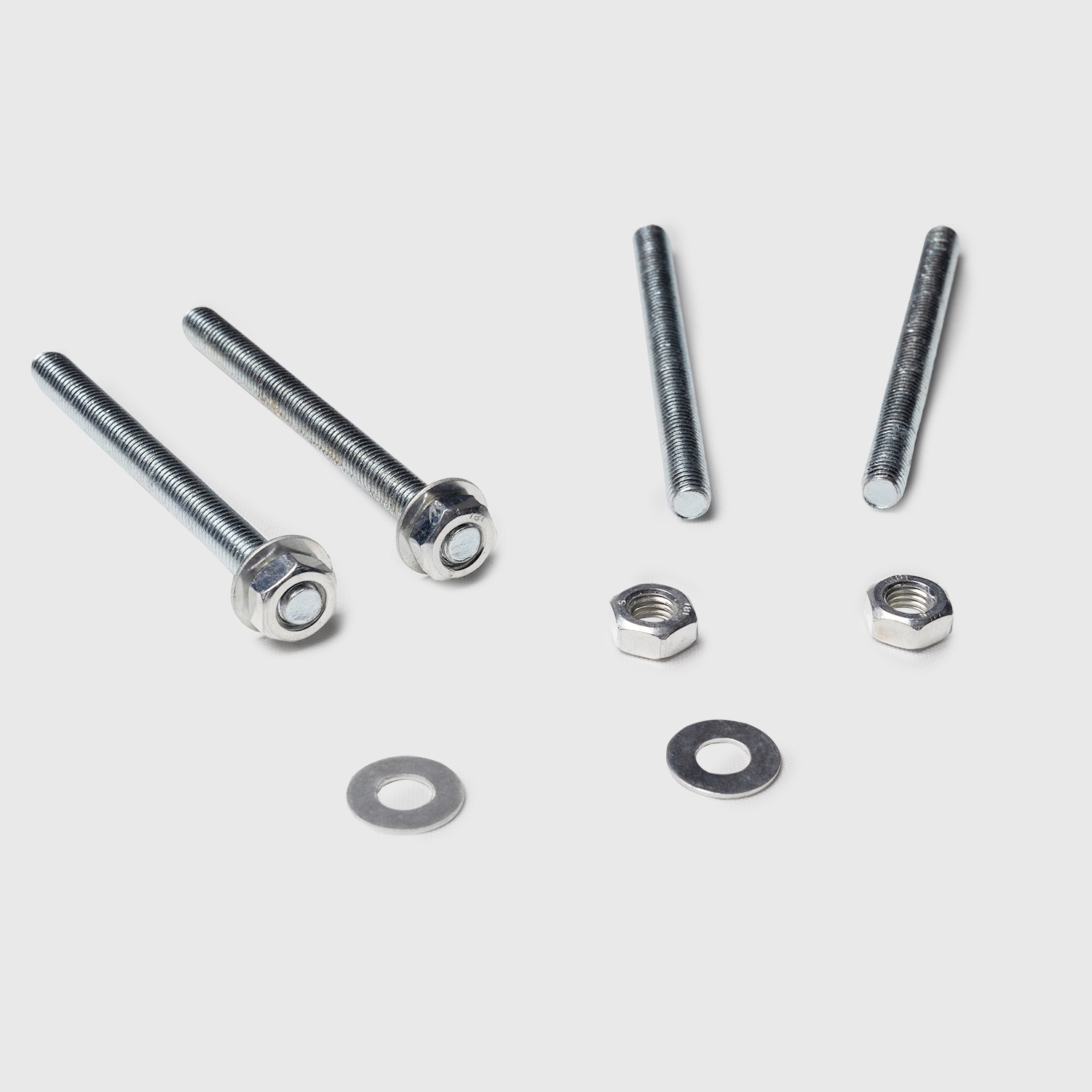

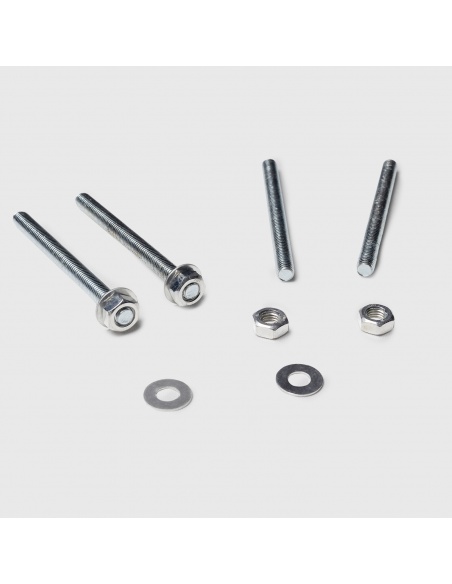

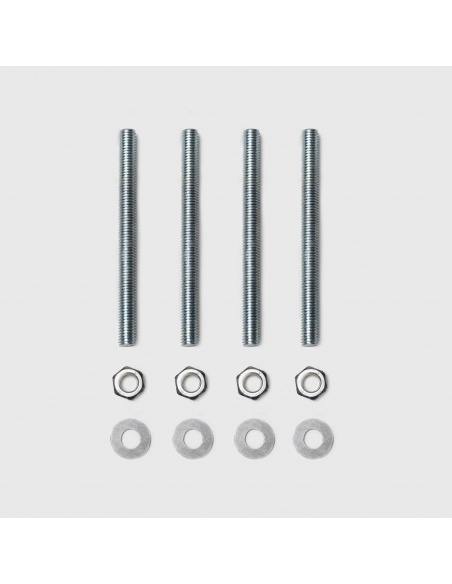

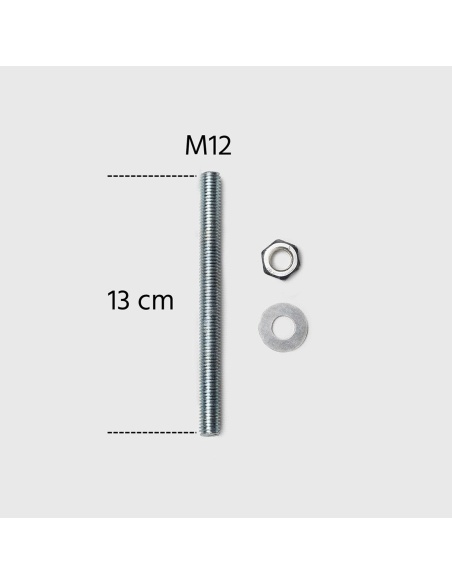

- Complete set: 4 M12 threaded rods, 4 washers and 4 nuts
- Galvanised steel or AISI 304 stainless steel: two finishes to choose from
- For the ground bases and wall collars of Maanta poles: size M12 x 13 cm
- Full hold with M-Plus injection mortar on cement, concrete, solid or hollow bricks
Compatible with the Alu Simple and Ulisse, EZ Mast and EZ Mast Inox poles
If you're looking for the threaded rods for wall plates, click here
Choose options
Free design service
After-Sales Service
Delivery 24 / 48 hours
Product Overview
Key Features

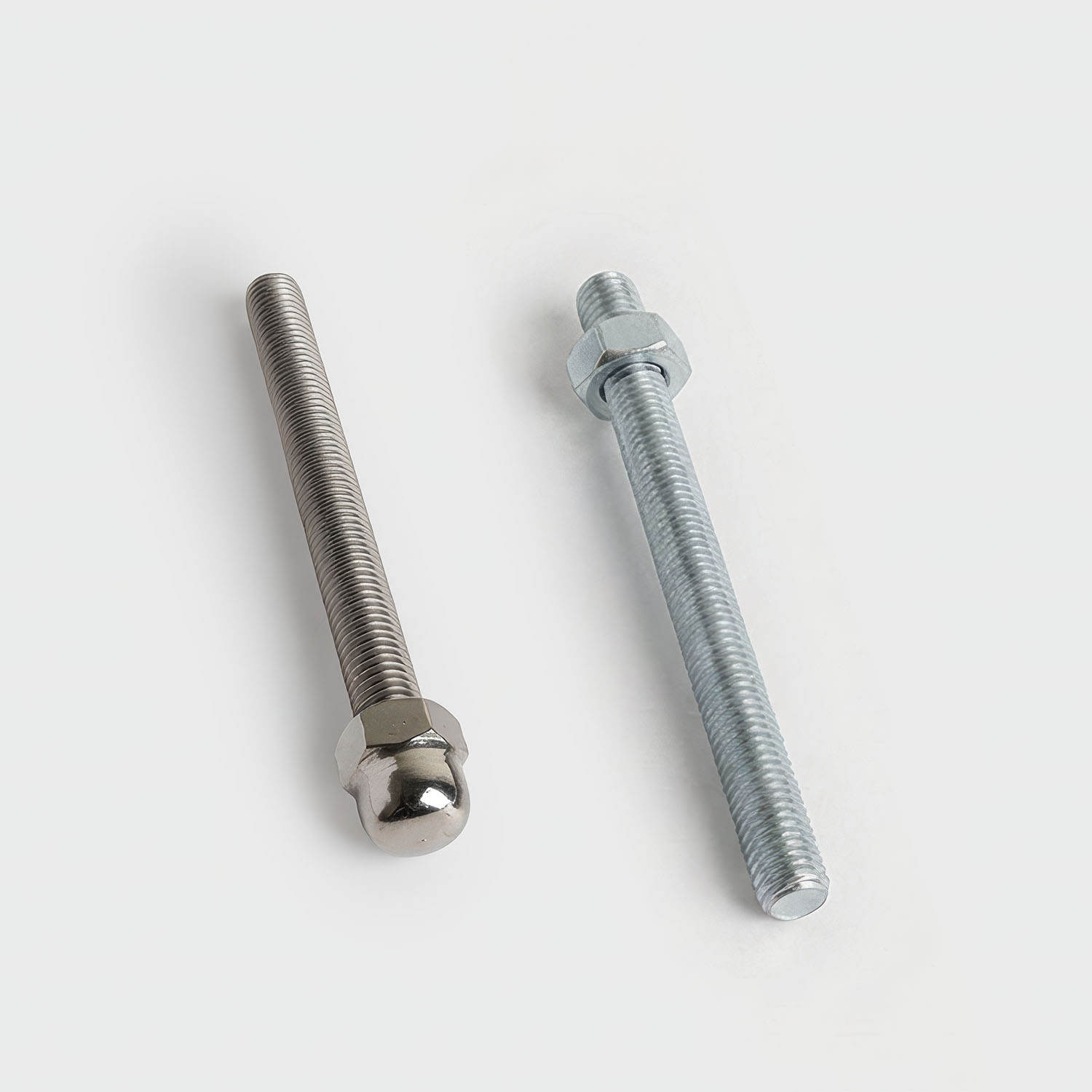

Finish
Two finishes, for two contexts
Galvanised for most outdoor applications, AISI 304 stainless steel where moisture and exposure demand greater corrosion resistance.

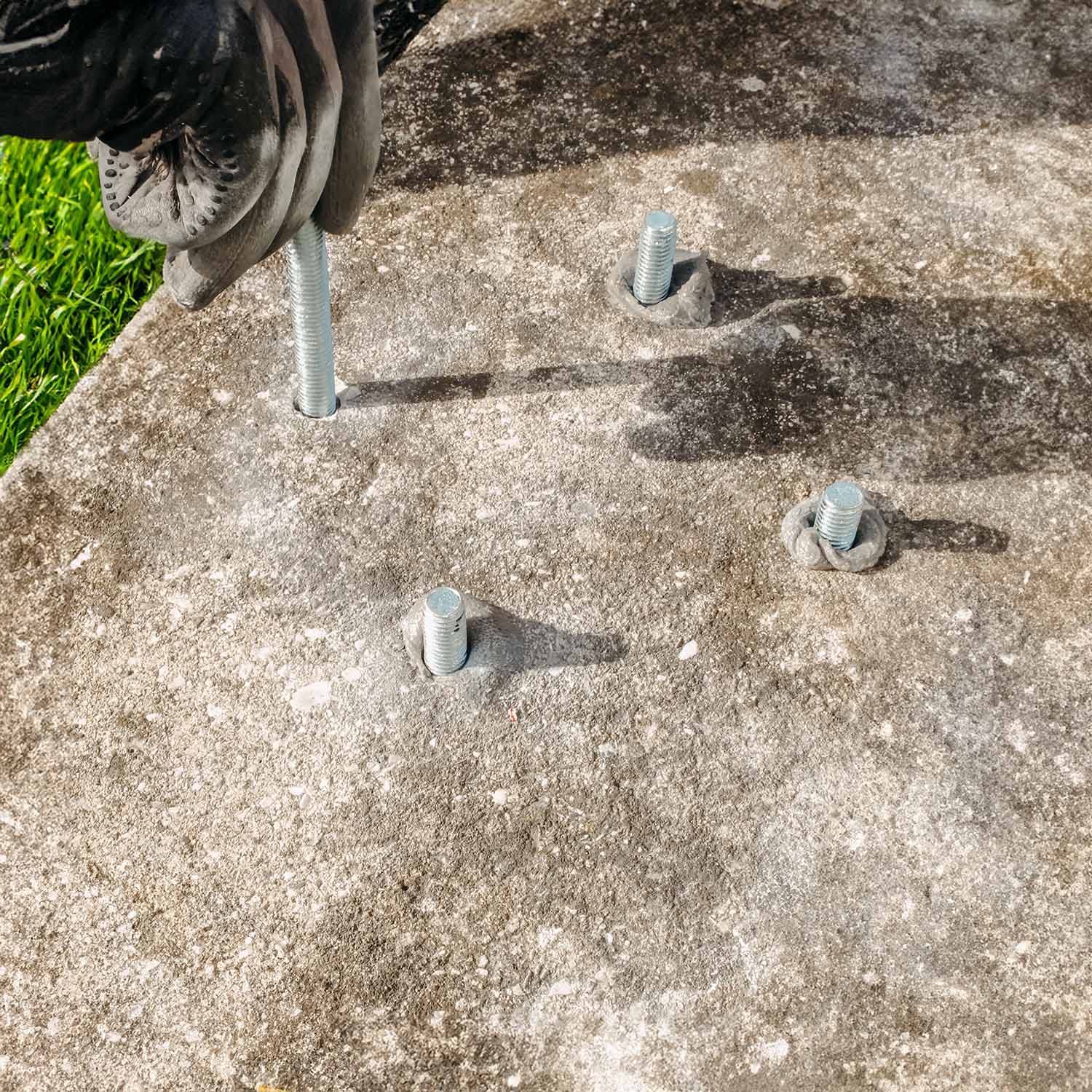

Stability
An anchorage that holds
Distributes the load with nut and washer and withstands tension, outperforming plugs or self-tapping screws.

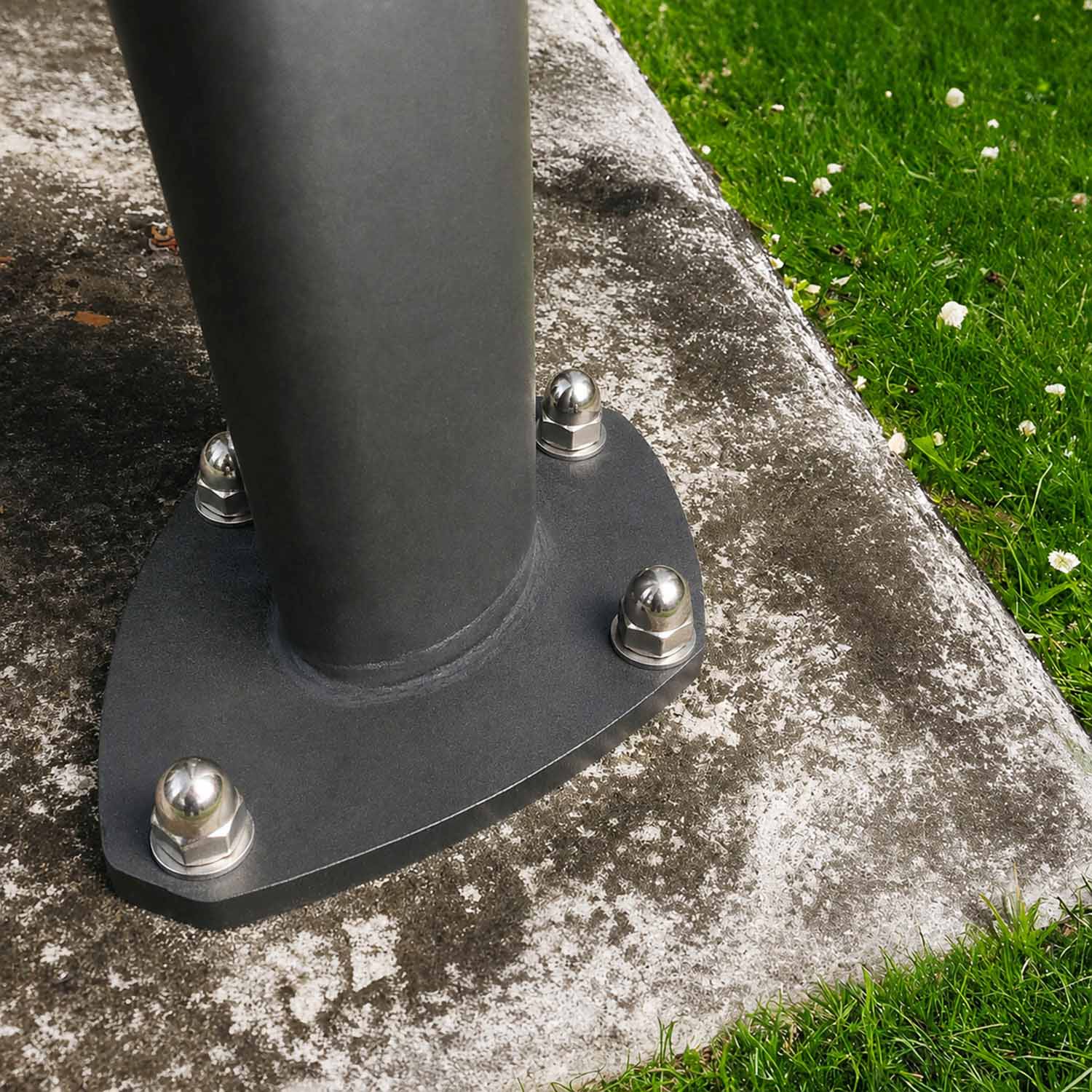

Compatibility
Designed for Maanta poles
M12 x 13 cm for bases and wall collars of Alu Simple, Ulisse and EZ Mast; not for wall plates.
Technical data sheet
| Model | M12 x 13 cm Threaded Rods |
| Available variants | Set of 4 pcs, galvanised or stainless steel finish |
| Included material | 4 M12 threaded rods 13 cm long, 4 washers, 4 nuts |
| Required material not included | M-Plus injection mortar, mesh/sieve sleeve (for hollow bricks) |
| Material | Galvanised steel or AISI 304 stainless steel |
Components and dimensions |

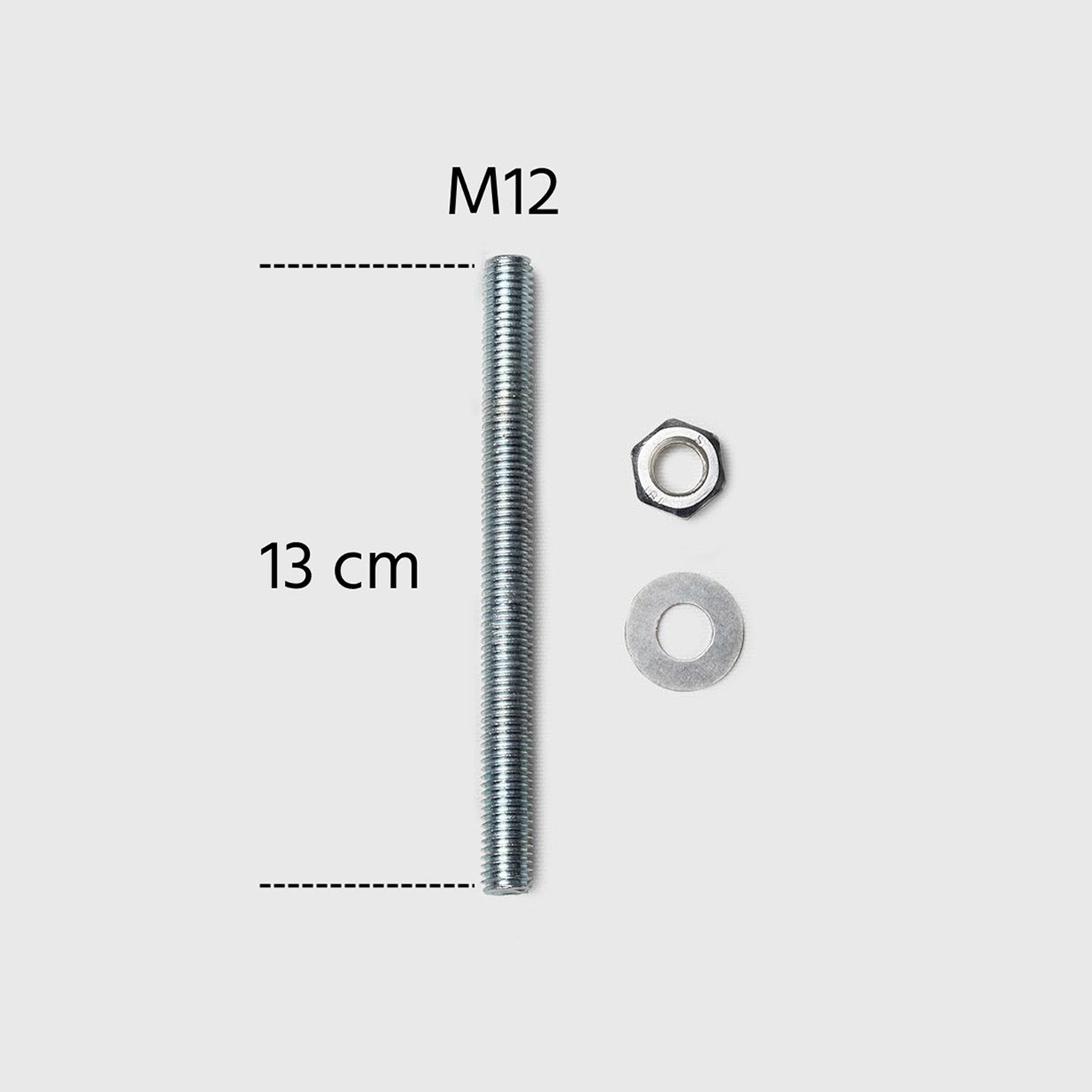

M12 threaded rod: Length 130 mm, Ø 12 mm M12 nut: 19 × 19 × 8 mm M12 washer Thread: M12 |
| Finish | Galvanised / polished stainless steel |
| Load direction | Stainless steel: axial (longitudinal) |
| Material tensile strength | Stainless steel: ≥ 600 N/mm² |
| Resistance | Suitable for outdoor use; AISI 304 stainless steel with higher corrosion resistance |
| Compatibility | Alu Simple, Ulisse, EZ Mast, EZ Mast Inox (wall bases and collars). NOT compatible with wall plates |
Packaging and warranty |
|
| Recommended installation | Ø14 mm drill bit; blow out the dust; M-Plus injection mortar; for hollow bricks use a mesh sleeve; insert the rod by turning it, leaving 2 cm protruding; wait for it to set; fit the base/collar; secure with washers and nuts |
| Recommended tightening torque | Concrete 40 Nm; Solid brick 25 Nm; Hollow brick 6 Nm |
| Weight | 0.4 kg |
| Packaging | 30 × 25 cm |
| Warranty | 2 years |
| Lorem ipsum | Lorem ipsum |
Read less -
Read more +
What you receive with the Threaded Rods for poles
FAQ
FAQ
It depends on where you're installing. Galvanised finish is well suited to most outdoor installations; AISI 304 stainless steel offers higher corrosion resistance and is the better choice in areas with greater humidity or prolonged exposure. It's also the most consistent option when paired with EZ Mast Inox poles.
Because they provide a mechanically stronger anchor, suited to significant static loads and structures subject to constant tension and thrust. The load is distributed evenly via nuts and washers, ensuring greater robustness over time.
For base plates and wall collars of Alu Simple, Ulisse and EZ Mast, including the EZ Mast Inox version. The M12 x 13 cm size is selected for these models.
No, these are designed for pole installation. For wall plates, you'll need a different type of bar, M10 x 12 cm, which you can find on our website.
The set includes 4 bars, the standard fitting for a single fixing point between the base and the collar. For multiple poles or additional anchor points, simply add more sets.
Galvanised steel protects against corrosion through a zinc coating, while AISI 304 stainless steel resists rust thanks to its alloy composition, performing better in conditions of high humidity and intense exposure. The choice comes down to long-term behaviour outdoors — not size, which is identical across both options.
It offers higher corrosion resistance than galvanised steel, but AISI 304 is not a marine-grade stainless steel like AISI 316. In highly saline environments, it holds up well with periodic checks and an occasional rinse with fresh water.
Diameter M12, length 13 cm (130 mm), standard right-hand thread: they use common M12 nuts and washers.
The hold depends mainly on the injection mortar and the type of substrate. The stainless steel rod material has a minimum breaking load of 600 N/mm².

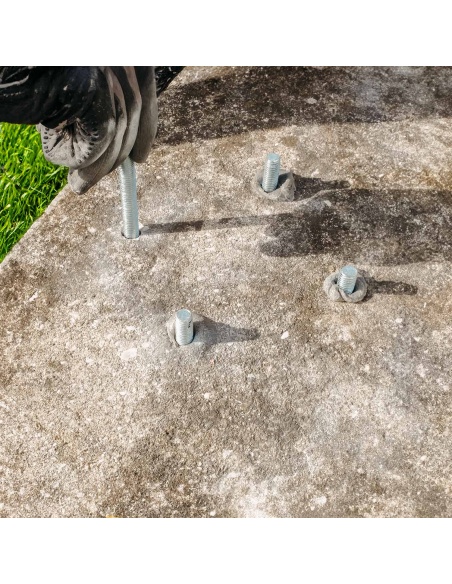

Drill a Ø14 mm hole, blow out the dust, inject the M-Plus injection mortar and insert the bar by rotating it, leaving 2 cm protruding. Wait for it to cure, then position the base or collar and secure with a washer and nut.
Solid cement, reinforced concrete, solid bricks, and hard surfaces. For hollow or friable substrates, such as hollow bricks, use a mesh sleeve with injection mortar.
Yes, we recommend it: the M-Plus injection mortar gives the bar a full and long-lasting grip in the support.
The torque depends on the substrate: solid concrete approximately 40 Nm, solid brick approximately 25 Nm, hollow brick approximately 6 Nm.
Yes: this is the size selected for Maanta poles and provides a good depth of grip. Leave 2 cm of bar protruding; with the sleeve, insert it all the way in.
Yes: it makes drilling easier and keeps the hole clean, improving the grip of the injection mortar.
Check the tightening of nuts and washers from time to time. For the stainless steel version in damp areas or near the coast, a rinse with fresh water removes salt deposits and extends their lifespan.
Two years. They are sold directly by Maanta, with the guarantee managed by us.
Get in touch with us: the Maanta support team will get back to you within a few working days and find a solution with a confirmed date.
