SolariA breathable the best radial cut shade sail
Solaria is our best breathable shade sail, made in Italy with the very strong Meshnet® HDPE 320 g/sqm fabric. Its main features are - Radial cut - Meshnet HDPE fabric 320 grams - Digital stitching - Stainless steel ring plates - Made in Italy ..
It optimally protects from UV rays, sun and wind up to 65 km / h.
The radial cut invented in 1983 by sails designer Tom Schnackenberg introduced a revolution in terms of fiber orientation and therefore cutting as well as sewing. Thanks to this type of processing we have sails that are more resistant to the wind, with greater resistance even over time thanks to the more uniform tension and distribution of loads.
Thanks to modern technologies, we are able to make extremely precise cuts and seams, obtaining a sail that can be stretched in a better way, thus helping the flow of water and wind resistance.
Extreme strength is also ensured in the seams made with highly technical thread and with a sewing machine designed for large sails.
It is equipped with multilayer reinforcements and special steel ring plates at each corner with adjustable reinforcement straps.
Available to measure directly from our configurator but also in 15 standard sizes.
Extremely robust Meshnet HDPE 320 gsm, ensures incredible durability, perfect elasticity, 40% water drainage, insulation and heat shield.
- Radial cut, allows greater distribution of tension, structural rigidity, resistance over time, better wind resistance (65 km / h)
- Made in Italy, digital cut and stitching, extra-strong stitching
- Corners with multilayer reinforcements and nautical quality 316 stainless steel rings
- Over 15 size variants
- Custom made available (click here to go to our configurator)
Questions about the product or order? Get our free planning help or call us ✆ +44 330 808 8140
Accessories
Description
Solaria HDPE represents the maximum desirable from a breathable shade sail. It is made with a virgin Meshnet HDPE 320 fabric: this allows better resistance over time and ensures greater tenacity of the fibers compared to a recycled one.
The large specific weight of 320 g/m² allows for two major advantages compared to the economic version of 180 g / m²: greater shade and therefore greater thermal insulation as well as a higher water runoff (about 40%).
The Meshnet HDPE 320 microperforated fabric still allows the heat to vent upwards but this is undoubtedly the right sail when our main enemy is the sultry heat! It is also resistant to both abrasion (10,000 cycles certified by the ASTM D4966 test) and linear traction.
The radial cut invented in 1983 by sails designer Tom Schnackenberg introduced a revolution in terms of fiber orientation and therefore cutting and sewing. It is certainly a much more laborious cut that involves working through many loops: however, it will be this richness that will allow a correct and uniform distribution of tension (through small 'vectors' of force present on each sleeve).
We will thus have sails more resistant to the wind, which even out the tension load, especially in the central part of the sail, i.e. the part where the fabric usually remains loose, exposing itself more to gusts of air . If you want to know more about the radial cut, we advise you to consult this specific in-depth analysis!

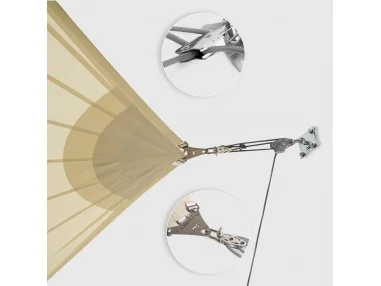

For correct tensioning we recommend installing anchors equipped with Maanta pulleys as well as the jack kit or the Muscle x3 multiplier
The combination of radial cut, very strong 320 gr / m2 fabric and other construction technologies gives life to Solaria HDPE, our best breathable shade.
Advantages
Advantages SolariA Breathable
Freshness - Wind resistance
Extremely robust Meshnet HDPE 320g / m² fabric, resistant to traction and tension, maximum color resistance, UV protection > 89%, allows hot air to vent upwards and ensures a great heat shield thanks to the thickness of the fabric itself
Quality Made in Italy
Digital fabric cutting, automatic sewing, top quality components, multilayer reinforcements
Tension and radial cut
Thanks to this type of production we have a sail that is more resistant to the wind, with a more uniform tension distribution, able to resist more over time and drain the water better and with a longer guarantee (Maanta offers 4 years of warranty on this product)
Easy installation, dimensions and custom creation
Easily adaptable to any area to be covered with standard sizes up to 42 square meters and the possibility of custom size orders with any shapes and sizes
Features
Features SolariA Breathable
The radial cut allows to obtain performances not comparable to the straight cut. Our digital technology allows for unparalleled accuracy and speed. The result is absolute constructive precision
The semi-automatic seams combined with a technical thread allow for excellent strength
The multilayer reinforcements in addition to strengthening the corners allow the tension to spread uniformly

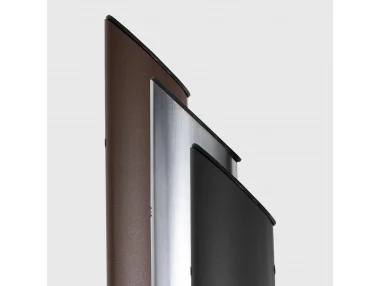

The tension can be developed with special pulleys and force multipliers such as those present on our Muscle Kits and on our Ulisse and Alu-Simple poles
Strengths
RADIAL CUT AND SEWING
This type of construction is usually used on racing boats to obtain better performance. The many cuts and seams allow a better distribution of the force applied on the corners and will give us a better taut sail, which will fight more efficiently against the wind, drain the water better, last longer.
MESHNET FABRIC HDPE 320GR
A very sturdy fabric, with great color persistence and excellent mechanical qualities.
THERMAL SHIELD
The thickness of the Meshnet HDPE 320gr fabric will allow you to create a real heat shield on sultry days: it will develop excellent shading, stopping the heat coming from the sun's rays but at the same time allowing the underlying heat to quickly vent towards the high
DIGITAL CUT
Thanks to the automated and digital cutting we are able to be extremely precise in the processing of panels and reinforcements, designed by computer. This absolute precision turns into a better finished product
EXTRA-STRONG SEAMS
Thanks to the semi-automatic sewing system and a careful selection of high quality yarns, we will obtain sturdy seams over time and suitable for being put under tension
MULTILAYER REINFORCEMENTS
One of the most stressful points of sail awnings are certainly the corners: we reinforce them with different layers of fabric that strengthen and stiffen, helping a correct propagation of force and embellishing the product
MADE IN ITALY
All processes are managed within our headquarters equipped with digital systems and qualified personnel. Each product is handcrafted but with advanced technologies. The quality control is strict
NAUTICAL GRADE STEEL PLATES
We use marine grade 316 stainless steel plates for all of our sails.
ADJUSTABLE STRAPS
The innovative tensioning system with perimetrable reinforcement straps, individually adjustable, allows a uniform distribution of tension over the entire surface of the sail.

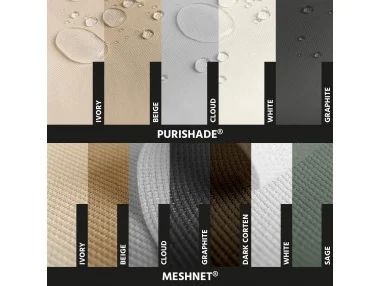

MESHNET 320 COLOURS
4 carefully selected shades for an optimal match in every situation.
Instructions
Assembly instructions in PDF format with technical data, content and step-by-step instructions for assembling Solaria.
Reviews
SUPERIOR QUALITY
Shade sails of superior quality, I previously bought from competing brands but nothing to do with Maanta sails.
Recommended, 5 deserved stars
Sebastiano Marchesini
Review left on Google MyBusiness, see more
BETTER ASSISTANCE
Better assistance than Amazon, very kind and helpful.
Exceptional quality and design for both poles and curtains.
The first test against the wind showed the clear superiority between the 4x5 purchased and that of another brand that we mounted previously. The curtain lets the wind pass without any problem.
Mounted here on Mount Etna it also faced its first rain of volcanic ash without any damage ..
Davide Corsaro
Review left on Google MyBusiness, see more
EXCELLENT CONSISTENCY
Excellent consistency of the sail , lwind resistance (caught a strong storm without consequences) and comfortable attachment rings of the ropes.
The only negative note is a slight imperfection in the stitching but which fhas not given problems up to now.
Diego
Review left on Amazon, see more
Guides & Info
GUIDES & INFOCreate Your Project with Our Guides!
Waterproof or breathable?
How to choose the fabric ►►►
Dimensions of the sails:
How to measure spaces and dimensions ►►►
Step by step installation guide
Assembly and maintenance guide ►►►
TENSIONED SAILSCorrect tensioning is one of the most important factors during assembly
The advantages of a well-taut sail are:
- better wind resistance (does not tear and does not wear fixings)
- no pockets of water are created (waterproof sails)
- greater longevity of the sail and fixings
Breathable Sail Comparison
MaantA Shade Sails - Breathable fabrics
 |
|
 |
|
| EASY SHADE | SAILL | SOLARIA | |
| TYPE OF FABRIC | VIRGIN HDPE POLYETHYLENE | VIRGIN HDPE POLYETHYLENE | VIRGIN HDPE POLYETHYLENE |
| FABRIC WEIGHT | 180 gsm | 320 gsm | 320 gsm |
| ECO-COMPATIBILITY |  5/5 |
3/5 |
3/5 |
| MAX AREA | 30 sm | 36 sm | 42 sm |
| PERSISTENCE OF COLOR |  5/5 |
5/5 |
5/5 |
| WIND RESISTANCE* | 40-50 km/h | 51-62 km/h | 55-65 km/h |
| RESISTANCE TO TEAR / HAIL |
 4/5 |
5/5 |
5/5 |
| WATERPROOF |  1/5 |
 2/5 |
2/5 |
| WATER RUNOFF | 20% | 40% | 40% |
| CONDENSATION RISK | - | - | - |
| RESISTENCE TO WATER COLUMN |
0 | 0 | 0 |
| PERCEIVED FRESHNESS | 4/5 |
5/5 |
5/5 |
| RESISTANCE TO MOLD | 5/5 |
5/5 |
5/5 |
| ABRASION RESISTANCE | 4/5 |
5/5 |
5/5 |
| RESISTANCE TO TENSION | 4/5 |
5/5 |
5/5 |
| UNIFORMITY TENSION | 2/5 |
4/5 |
5/5 |
| FABRIC CUT | in bands | in bands | radial cut |
| YEARS WARRANTY *** | 2 | 3 | 4 |
| COST PER SQM | ca 3€ al mq | ca 25€ | ca 35€ |
| CUSTOM SIZES AVAILABLE | NO | YES (+8€/mq) | YES (+8€/mq) |
| DISCOVER! | DISCOVER! | DISCOVER! |
* with correct application of tension 45 kg for each corner
** with a minimum inclination of 1 meter
*** the guarantee is recognized for products installed as per our guides and only on manufacturing defects
