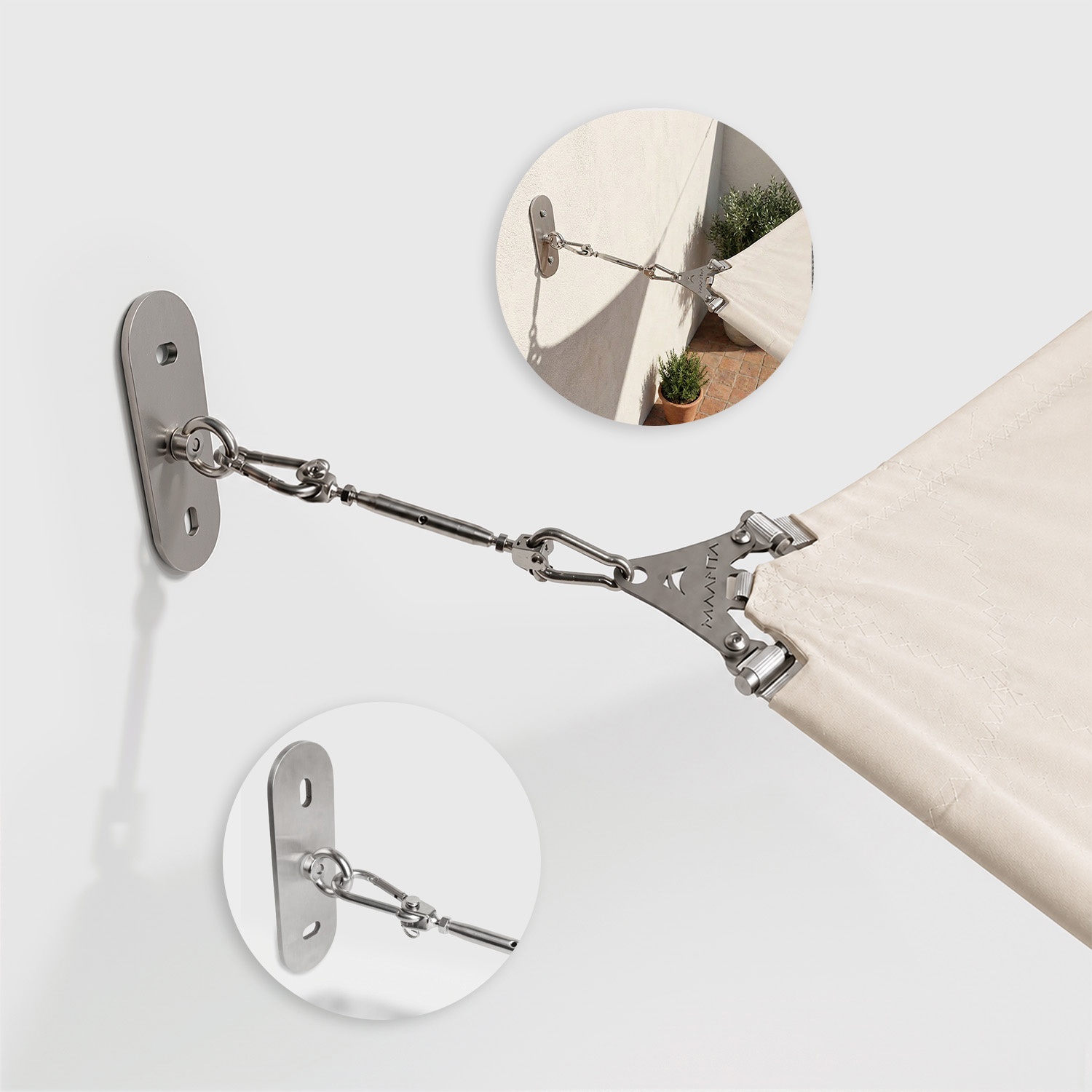

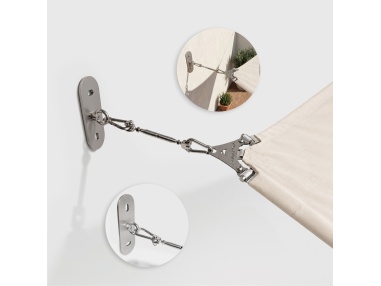

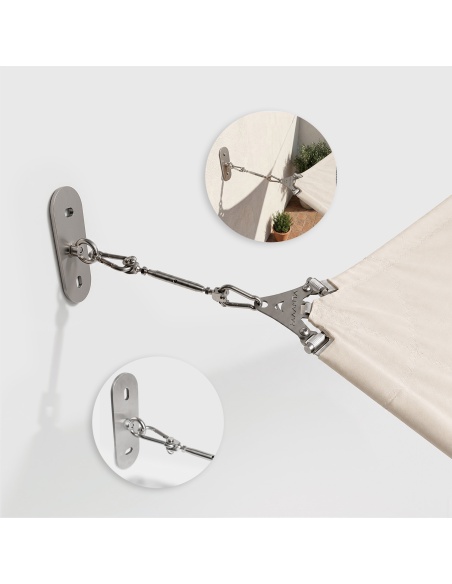

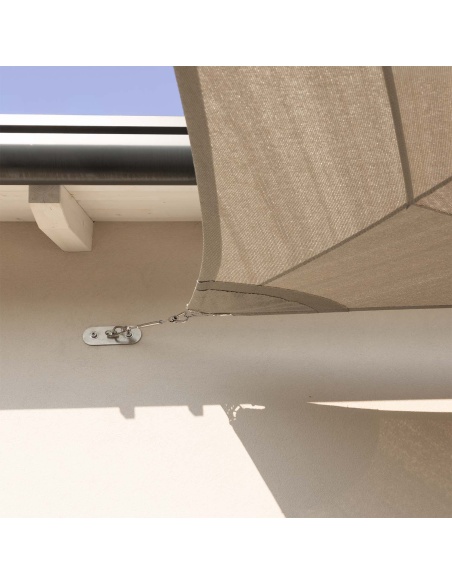

Sartya Wall Plate Kit Anchor Plate for Sails on External Wall Insulation

Sartya is the wall anchor plate that gives your shade sail a fixed point to rely on, season after season. It rests on a wide surface and fastens with just two anchors, because it's designed for walls with external insulation too. You mount it on masonry, wood or an insulated facade, horizontally or vertically.

  • Made for external wall insulation: the 20×7 cm surface spreads the load across the insulation.
  • Two 22×12 mm slots: fastening with room for adjustment and just two anchors.
  • Adjustable orientation: you can mount it horizontally or vertically.

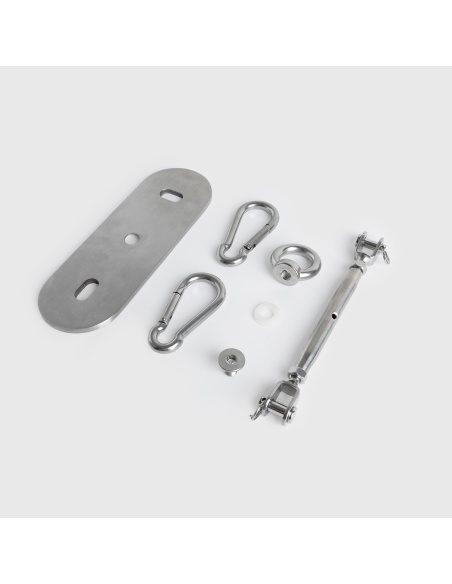

  • Complete stainless steel kit: turnbuckle, carabiners and eye bolt already in the box.

Choose options

Version: Plate + Stainless Steel Turnbuckle
  Plate + Stainless Steel Turnbuckle
  Plate + Stainless Steel Turnbuckle + 2 Stainless Steel Threaded Rods

Total price

£ 63.00
VAT included
truck
truck
Order now and receive it by
with DHL Express

Free design service

After-Sales Service

Delivery 24 / 48 hours

Product details

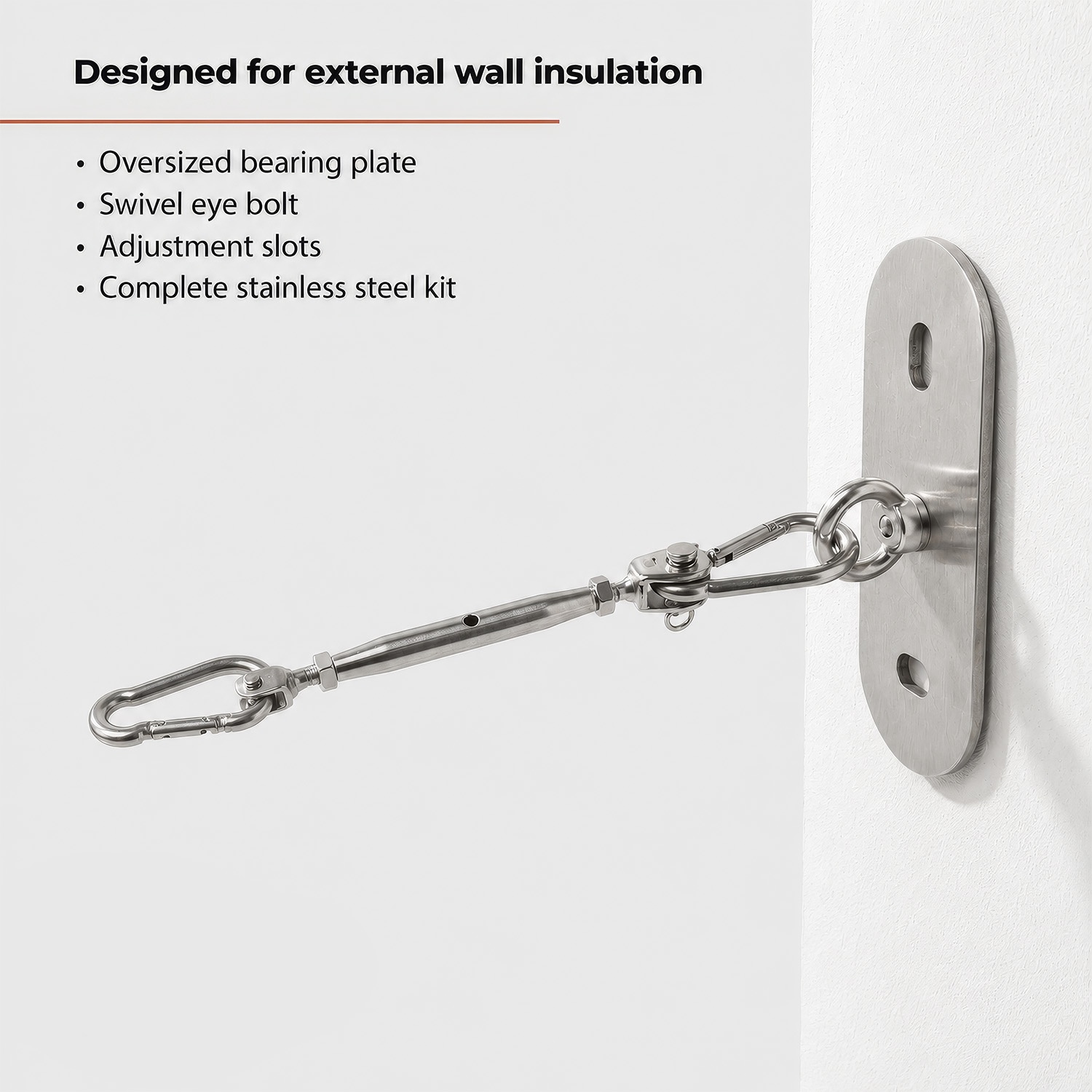

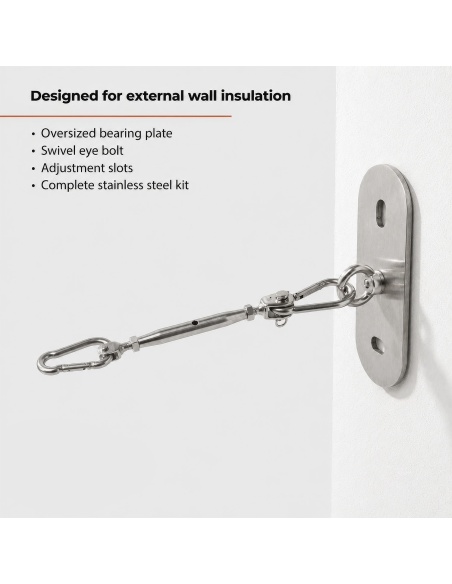

Designed for thermal insulation cladding

More surface area, fewer holes

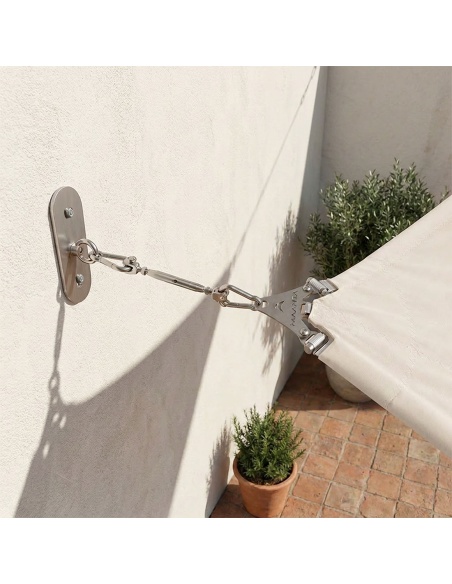

Today's homes wear a thermal insulation layer that keeps them warm: on that wall, you need anchors designed specifically for the purpose. Sartya rests on a twenty-by-seven centimetre surface and distributes the pull of the shade sail across the entire insulation surface, with just two fixing points. The wall works undisturbed, the shade sail stays taut.

Designed for thermal insulation cladding

More surface area, fewer holes

Today's homes wear a thermal insulation layer that keeps them warm: on that wall, you need anchors designed specifically for the purpose. Sartya rests on a twenty-by-seven centimetre surface and distributes the pull of the shade sail across the entire insulation surface, with just two fixing points. The wall works undisturbed, the shade sail stays taut.

Key features

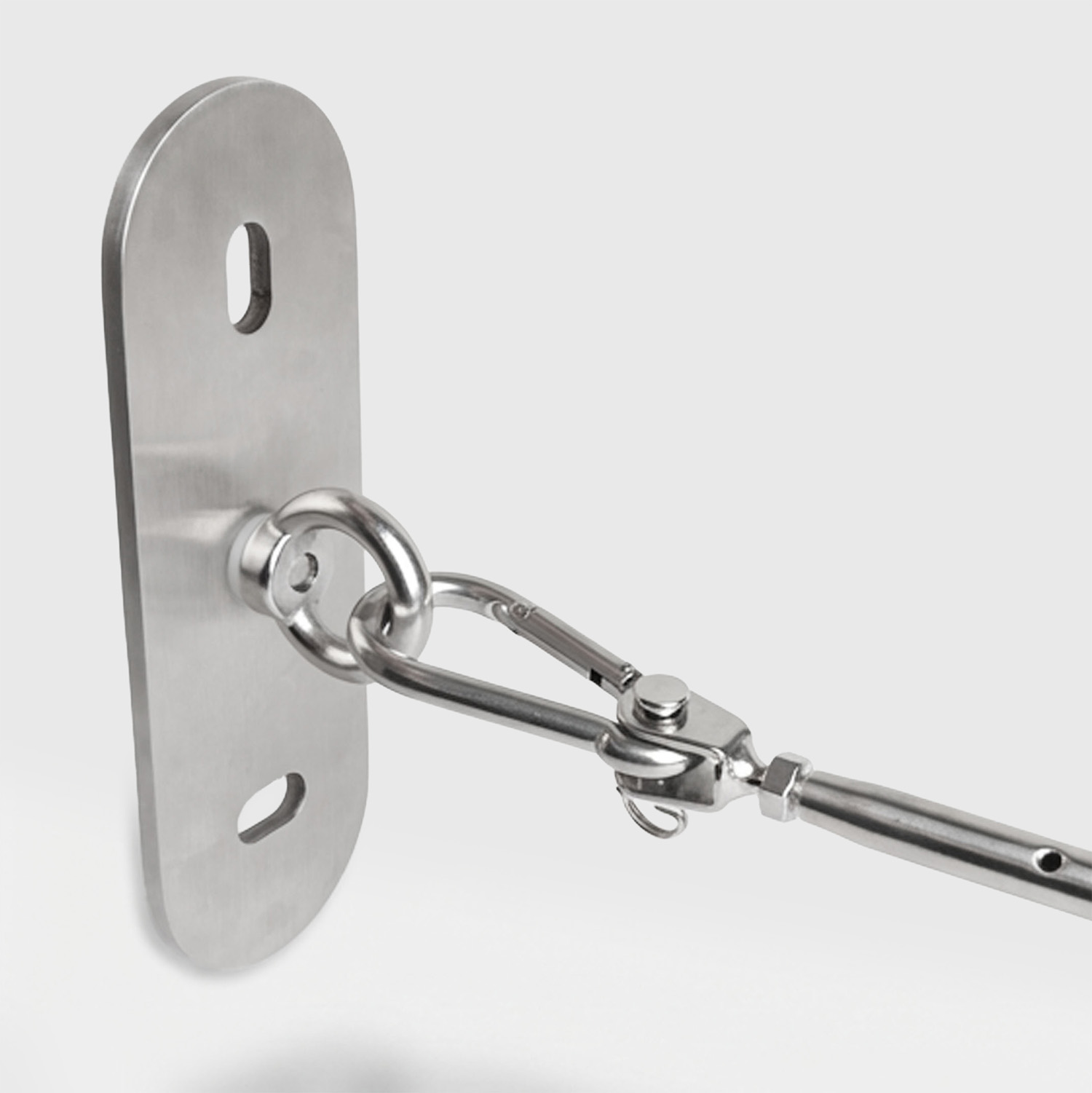

Wide slots, forgiving installation
Installation

Wide slots, forgiving installation

Two 22×12 mm slots instead of round holes: align the plate and adjust the position during installation, even after the holes have been drilled.

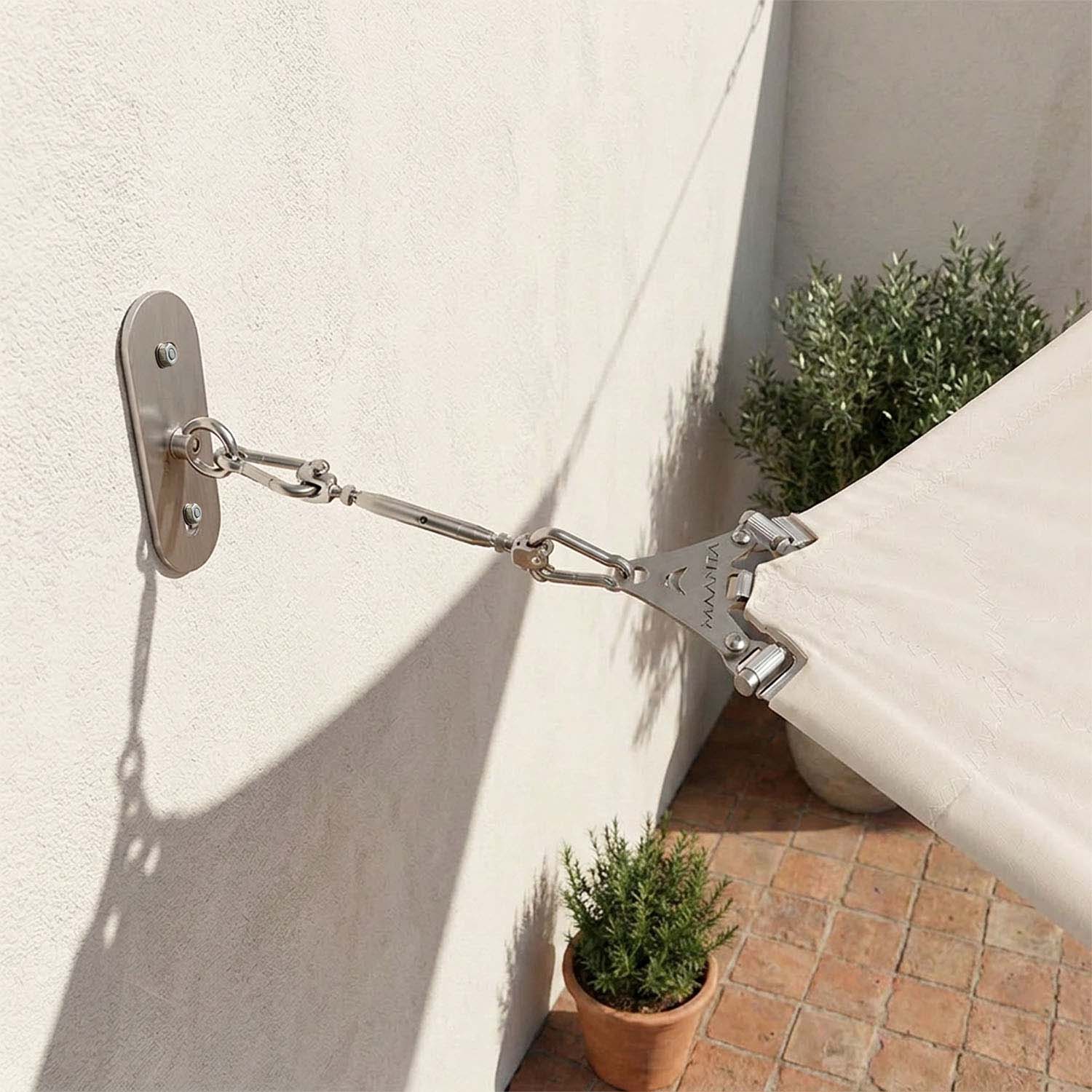

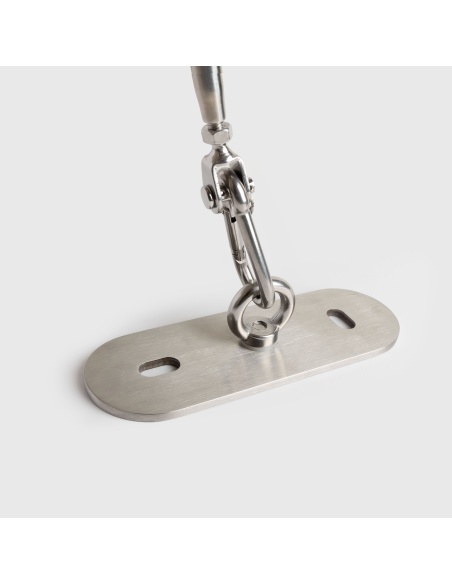

An enlarged bearing surface
Bearing

An enlarged bearing surface

Larger than a standard wall plate: greater bearing surface against the wall and improved stability on thermal insulation cladding.

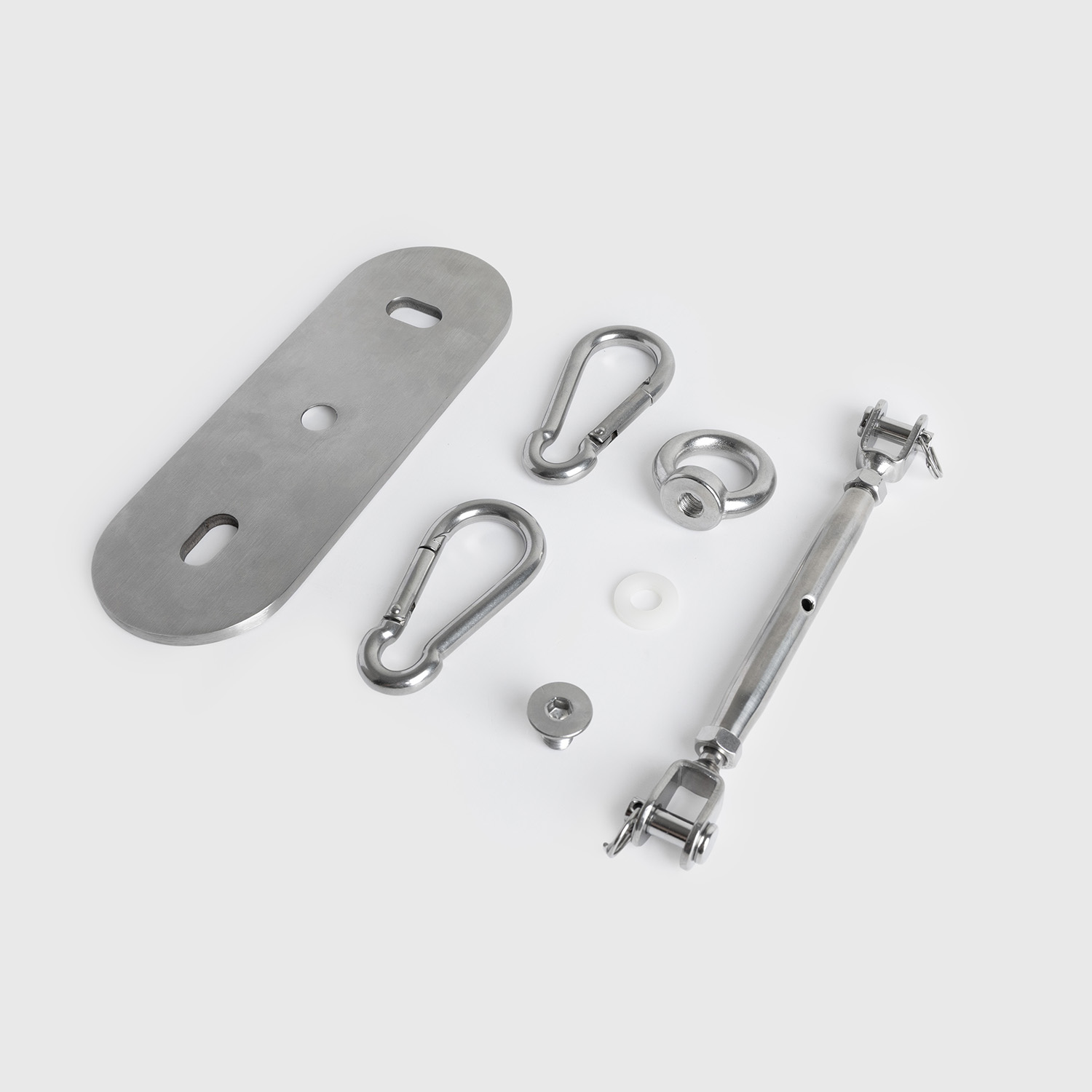

From wall to shade sail, complete
Kit

Everything included

Tensioner, two carabiners, eye bolt, screw and washer are already included in the package: every link in the connection comes together with the plate.

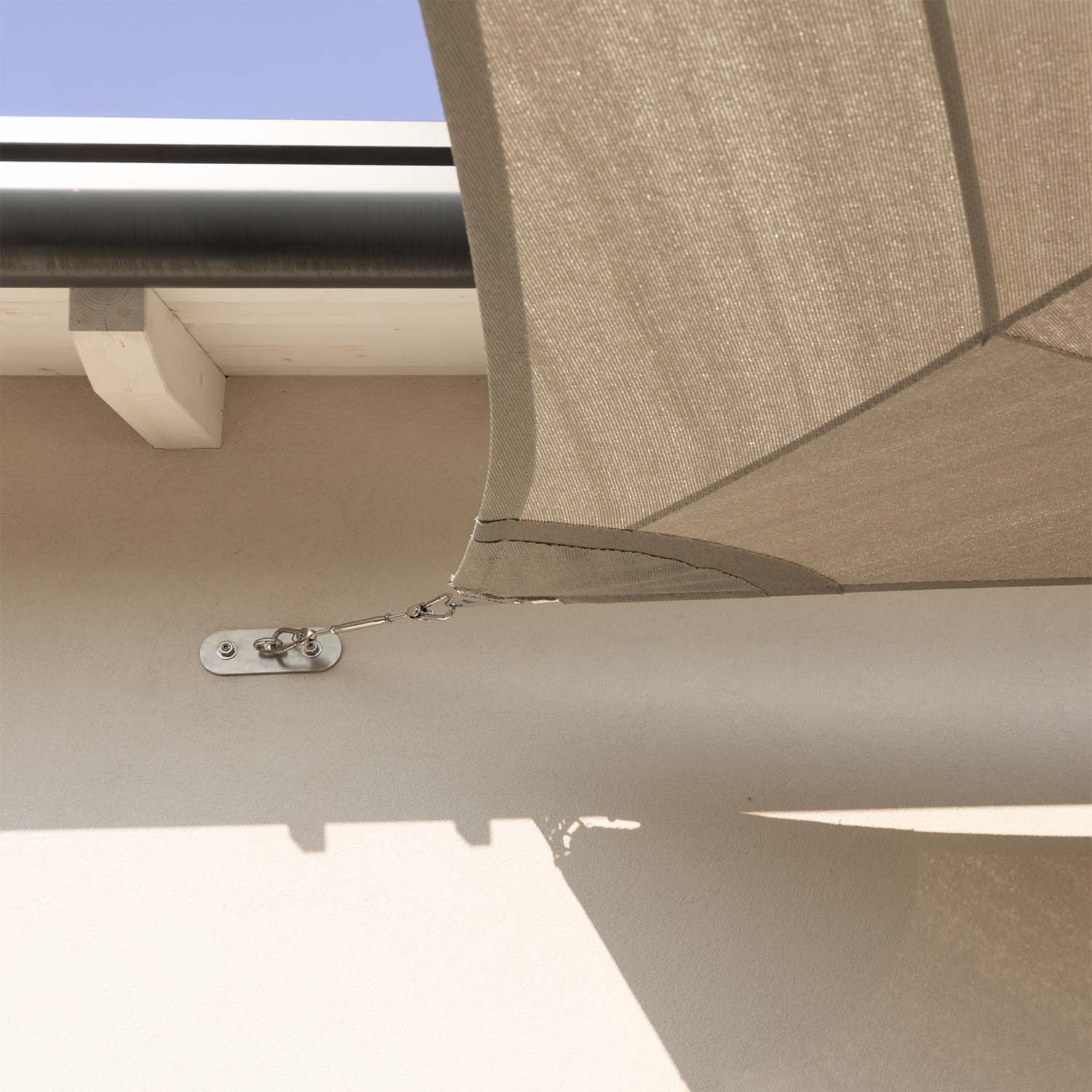

Certified load ratings, link by link
Load ratings

Certified load ratings, link by link

The tensioner works up to 440 kg, the eye bolt up to 215 kg, and the carabiners up to 180 kg.

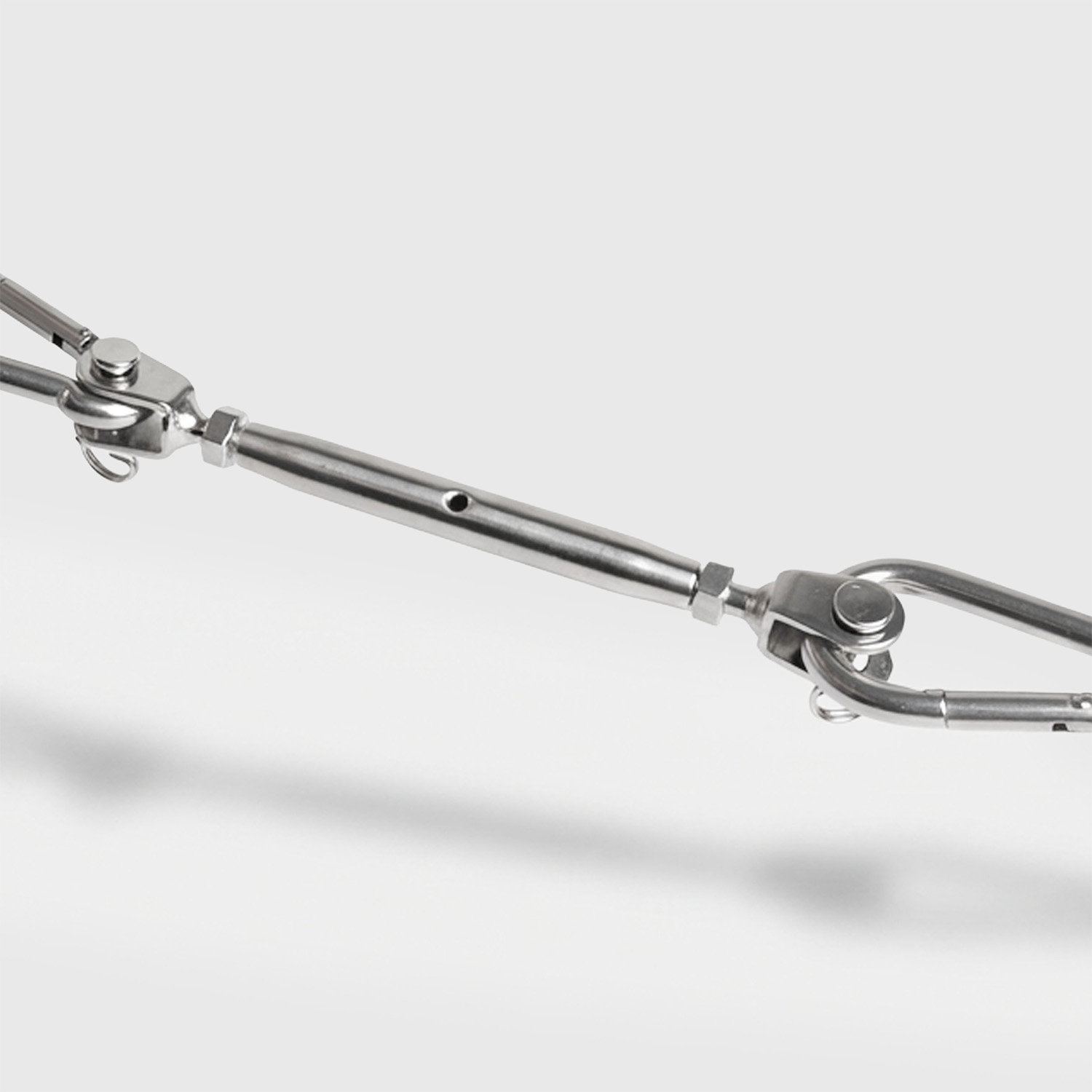

Stainless steel, even by the sea
Material

Stainless steel, even by the sea

The plate is made of 304 stainless steel, polished and brushed, declared suitable for permanent outdoor exposure and for saline and coastal environments.

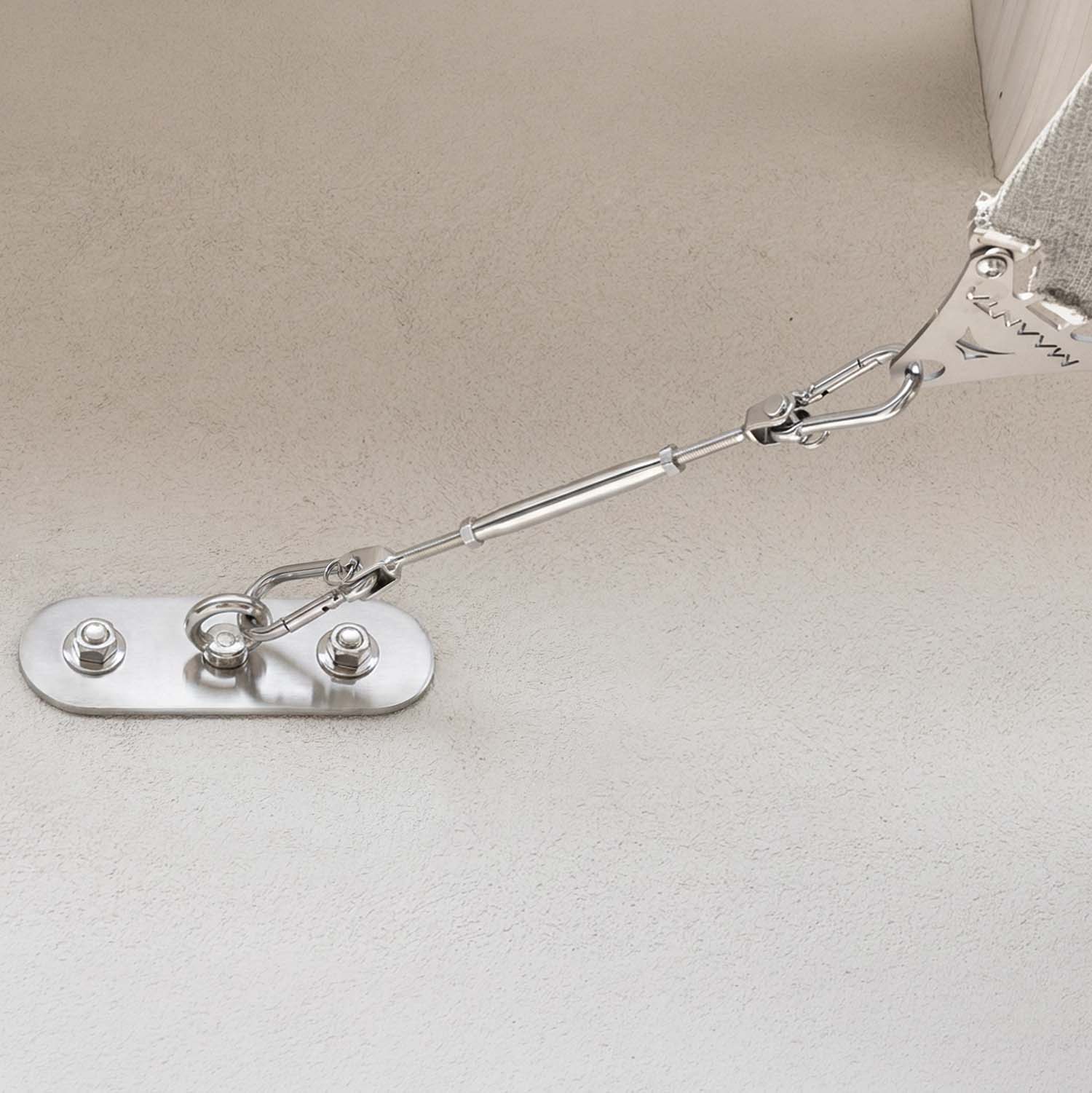

Tension can be restored over time
Adjustment

Adjustable tension

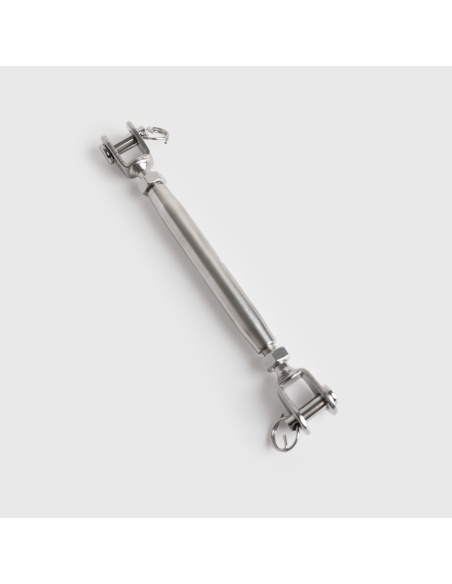

The tensioner adjusts between 165 and 240 mm: tension the shade sail during installation and restore the tension at the start of each season.

Get inspired

Comparison table

Compare Maanta wall plates and find the right one for your space.

Sartya Wall Plate Kit

Muscle X3 Wall Kit

EZ Wall Fix

Nautical Rope Wall Kit

Ideal for


External wall insulation and shade sails under high tension


Tensioning effortlessly, with quick release


The first kit, simple and essential


Anchoring points away from the shade sail, up to 2 m

External wall insulation

Designed for external wall insulation: just 2 fixings, load distributed over 20×7 cm

Compatible with dedicated anchors

Compatible with dedicated anchors

Compatible with dedicated anchors

Plate

200 × 70 mm

95 × 95 mm

95 × 95 mm

95 × 95 mm

Wall fixing

2 slots 22×12 mm, position adjustable during installation

4 holes Ø 12 mm

4 holes Ø 12 mm

4 holes

Tensioning system

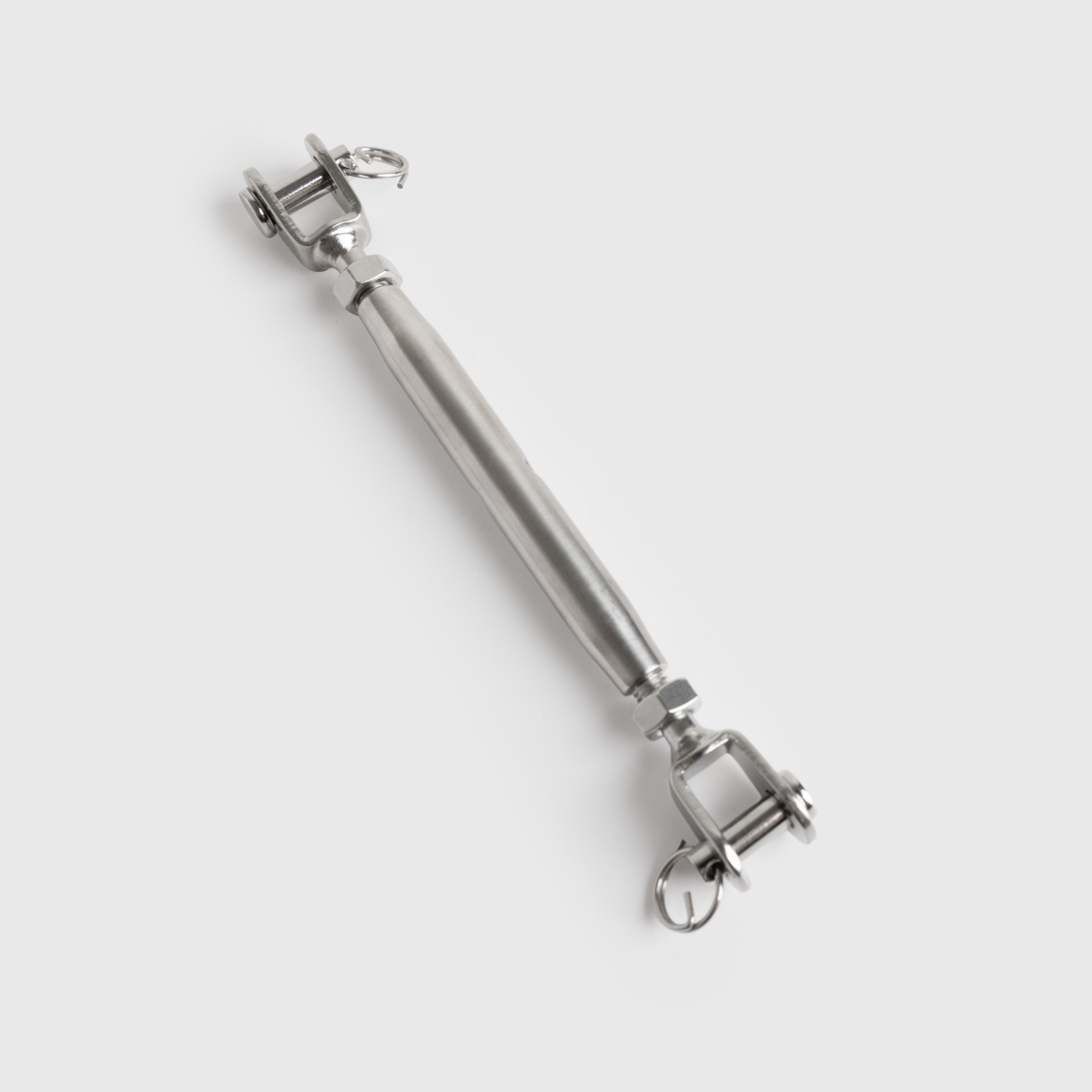

M8 turnbuckle, adjustment 165/240 mm

Pulley block with rope cleat, triple the force

M6 turnbuckle, adjustment 160/255 mm

Nautical rope with adjustment shackle

Distance shade sail/wall

Up to maximum turnbuckle length

From 35 cm to 1 m

Up to maximum turnbuckle length

Up to 2 m

Material

304 stainless steel

304 stainless or galvanised steel

304 stainless or galvanised steel

304 stainless or galvanised steel

Kit included

Turnbuckle, 2 carabiners, swivel eye bolt, screws

2 pulleys, 2 shackles, 4 m of nautical rope

Turnbuckle, carabiner, eye bolt, screws and key

2 carabiners, shackle, 2 m of nautical rope


Go to product page

Go to product page

Go to product page

Go to product page

Everything you need: guides and instructions

Document / Video Action

Technical datasheet

Product type

Wall anchor plate kit for shade sails

Available versions

Basic version: wall plate + turnbuckle

Version with bars: wall plate + turnbuckle + 2 threaded bars

Finish

Polished and brushed, natural steel

Plate dimensions

200 × 70 mm

Plate thickness

5 mm

Fixing holes

2 slots of 22 × 12 mm · centre distance approx. 122 mm

Plate weight

904 g

Plate material

304 stainless steel, rust-free, suitable for permanent outdoor exposure

Finish

Polished and brushed, natural steel

Tensile strength

≥ 515 N/mm²

Saline / coastal environments

Suitable

Kit included

1 wall plate, 1 M8 turnbuckle (adjustment 165-240 mm), 2 carabiners 8×80 (lever opening 9 mm), 1 M10 female eye bolt (ring Ø 25 mm inner), 1 TSPEI M10×16 screw, 1 nylon washer

Kit material

Stainless steel (carabiners and eye bolt grade 304)

Working load limit (WLL)

Turnbuckle 440 kg, Eye bolt 215 kg, Carabiners 180 kg

Breaking load

Turnbuckle 2,200 kg, Carabiners 900 kg, Eye bolt 650 kg

Compatible walls

External thermal insulation (with specific plugs, e.g. Fischer Thermax), solid masonry and concrete, load-bearing timber

Wall fixing

Not included, plugs and anchors are chosen according to the wall

Installation orientation

Horizontal or vertical, according to the direction of pull

Packaging and warranty


Package contents

Basic version: Plate + Stainless steel turnbuckle

Version with bars: Plate + Stainless steel turnbuckle + 2 stainless threaded bars

Packaging

Protective bag

Warranty

2 years

Read less -

Read more +

What you receive with Sartya

FAQ

FAQ

Sartya is designed to create a wall-mounted anchor point for your shade sail, especially on walls with external thermal insulation: the eye bolt accommodates a carabiner and tensioner, keeping the fabric taut throughout the season.

Yes, that's exactly what it's designed for: the 20×7 cm surface spreads the load across the insulation layer, and the two fixings are made using anchors specifically designed for insulated walls.

It rests on a wider surface, is secured with two fixings instead of four, and features adjustment slots: it's the ideal choice for insulated walls and tighter shade sails.

No. Sartya is a fixing accessory: the shade sail is sold separately.

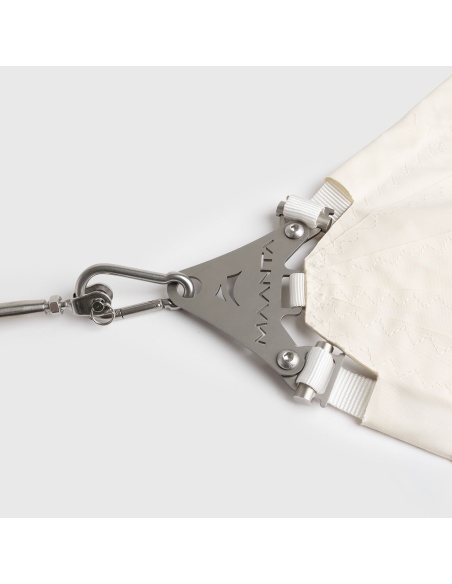

Compatible with Maanta shade sails, using a snap hook and tensioner: it is part of the Maanta anchoring system.

No: wall fixings depend on the surface type. For insulated walls, you'll need specialist fixings (such as Fischer Thermax); for solid masonry, use injection mortar or anchors suitable for the substrate.

One for each corner you want to fix to the wall. The remaining corners can be secured using poles or other Maanta anchoring solutions.

200 × 70 mm, weighing 904 grams.

304 stainless steel, polished and brushed: it stays outdoors all year round without rusting.

It is a stainless steel suitable for permanent outdoor exposure, including in coastal areas.

The 22×12 mm slotted holes give you room to align the plate and adjust the position during installation, even after the holes have already been drilled.

In addition to the plate, we also provide 1 M8 turnbuckle, 2 snap hooks 8×80, 1 female eye bolt M10, 1 TSPEI screw M10×16 and 1 nylon washer, all in stainless steel.

Each component has its own declared working load: 440 kg for the tensioner, 215 kg for the eye bolt, and 180 kg for the carabiners. The connection works within the limits of the weakest component.

It is the weight at which the component can operate safely: the declared breaking load is three to five times higher, to allow a safety margin for gusts and sudden jerks.

Between 165 and 240 mm: the travel range is designed to tension the shade sail and retension it over time.

Yes, both the plate and the kit are certified suitable for saline and coastal environments. If you're near the coast — as many British gardens and terraces are — we recommend periodic cleaning to keep everything in top condition.

Using specialist fixings that pass through the insulation and anchor into the load-bearing masonry, such as Fischer Thermax fixings. The slotted holes guide the alignment of the plate.

Yes: on solid masonry it is fixed using anchors suited to the surface, such as a standard plate.

It's entirely up to you: choose based on the wall and the direction of the pull, and the swivel eye bolt will do the rest.

It depends on the wall type: for insulated render systems you need specialist fixings, while for solid masonry traditional anchors will do the job. If you’re not sure, our free design service will point you in the right direction.

They allow you to adjust the plate alignment even after the holes have been drilled, without needing to redo them.

Two years from the date of purchase.

Material and workmanship defects, covering the base plate and all components included in the kit.

It activates automatically upon delivery.

Get in touch with our customer service team with photos and a description: we'll arrange the replacement for you.

If it hasn't been dispatched yet, in most cases yes – get in touch with our customer service team right away.

Our free design service is here to help – just head to the "Contact" section: we'll guide you through the best fixing points and accessories for your shade sail.
